Product
A653 PPGI

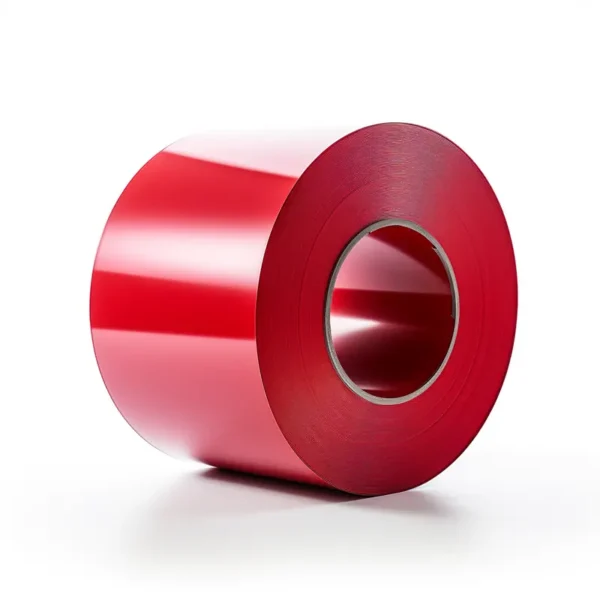

The A653 PPGI Steel combines the solidity with vibrant colors making it a perfect option for construction and architectural works. This PPGI Durable Steel is made from a demanding procedure that has different steps. From hot-dip galvanizing to high-quality paint-finishing, each step is full of care and discipline. Each step ensures corrosion resistance and wonderful appeal.
Parameter
Wholesale rectangular steel pipe manufacturer-pre-coated GI/PPGI/PPGL color coated galvanized steel roof slab：
| Material | Made from cold-rolled steel with zinc coating and a durable paint finish (painted top 15-35 Microns and painted back 5-35 Microns) offers durability and sustainability for various applications. |
| Thickness | 0.12-1.0mm |
| Width | 600-1000mm (after corrugated) |
| Length | 1000-12000mm |
| Zinc Coating | Z40-275g/sqm |
| Paint Top | 15 – 35 Microns |
| Paint Back | 5 – 35 Microns |
| Coating Color | ALL RAL Cards Color |
| Coating Type | Top Painted : PVDF / HDP / SMP / PE / PU Primer Painted : Polyurethane / Epoxy / PE Back Painted : Epoxy / Modified Polyester |
| Weight Per Bundle | 2-5 tons |
A653 PPGI Steel
Available in different thicknesses ranging from 0.12-1.0mm and dimensions, this A653 PPGI Steel are ideal choices for cladding roofing, and structural projects where solidity and durability matter the most.
| PPGI | Paint Line 1 | Paint Line 2 | Paint Line 3 |
| Material Thickness | 0.25 – 1.50 mm | 0.25 – 1.20 mm | 0,25-1,20 mm |
| Width | 900 – 1300 mm | 900 – 1300 mm | 900 – 1300 mm |
| Coil Inner Diameter | 508 mm | 508 mm | 508 mm |
| Maximum Roll Weight | 11 Tons | 11 Tons | 11 Tons |
The coverage area and applicability of PPGI Sheets are determined by their dimensions and the length of these sheets can certainly reduce the number of sheets while installing. These solid sheets can also cover a large area more efficiently reducing material waste and saving installation time.
| CONTINUOUSLY HOT-DIP COATED STEEL FLAT PRODUCTS FOR COLD FORMING (TS EN 10346 / TS EN 10169) | |||||||||||
| No | Steel Quality | Steel Number | Coating Type | Chemical Composition ( % ) Max | Yield Strength( N/mm2 ) | Tensile Strength( N/mm2 ) | Elongation ( % ) Min | ||||
| C | Si | Mn | P | S | |||||||
| 1 | DX51D | 1.0917 | +Z | 0,18 | 0,50 | 1,20 | 0,12 | 0,045 | * | 270-500 | 22 |
| +AZ | |||||||||||
| 2 | DX52D | 1.0918 | +Z | 0,12 | 0,50 | 0,60 | 0,10 | 0,05 | 140 – 300 | 270 – 420 | 26 |
| +AZ | |||||||||||
| 3 | DX53D | 1.0951 | +Z | 140 – 260 | 270 – 380 | 30 | |||||
| +AZ | |||||||||||
| 4 | DX54D | 1.0952 | +Z | 120 – 220 | 260 – 350 | 36 | |||||
| +AZ | |||||||||||
| 5 | S220GD | 1.0241 | +Z | 0,20 | 0,60 | 1,70 | 0,10 | 0,045 | Min 220 | Min 300 | 20 |
| +AZ | |||||||||||
| 6 | S250GD | 1.0242 | +Z | Min 250 | Min 330 | 19 | |||||
| +AZ | |||||||||||
| 7 | S280GD | 1.0244 | +Z | Min 280 | Min 280 | 18 | |||||
| +AZ | |||||||||||
| 8 | S320GD | 1.0250 | +Z | Min 320 | Min 360 | 17 | |||||
| +AZ | |||||||||||
| 9 | S350GD | 1.0529 | +Z | Min 350 | Min 390 | 16 | |||||
| +AZ | |||||||||||
| 10 | S390GD | 1.0238 | +Z | Min 390 | Min 460 | 16 | |||||
| +AZ | |||||||||||
| 11 | S420GD | 1.0239 | +Z | Min 420 | Min 480 | 15 | |||||
| +AZ | |||||||||||
| 12 | S450GD | 1.0233 | +Z | Min 450 | Min 510 | 14 | |||||
| +AZ | |||||||||||
| 13 | S550GD | 1.0531 | +Z | Min 550 | Min 560 | – | |||||
| +AZ | |||||||||||
These solid sheets are used in the construction of architectural designs, cladding, and roofing due to their corrosion resistance and wonderful visuals. They are the ideal choices for residential and commercial projects due to their protection against weather elements. These sheets can also be used in the automotive industry for making structural components and body panels as they are rust-resistant and roust. These sheets provide a perfect solution for many industries where durability, longevity, and performance matter the most.
