Four Steels

Product

SGCC PPGI

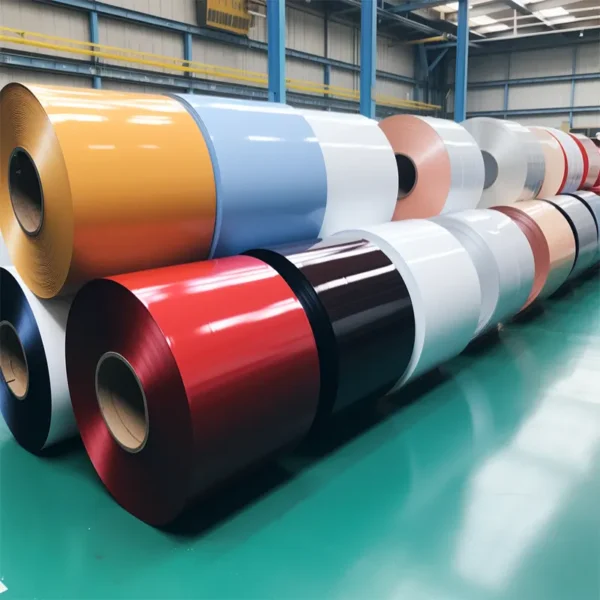

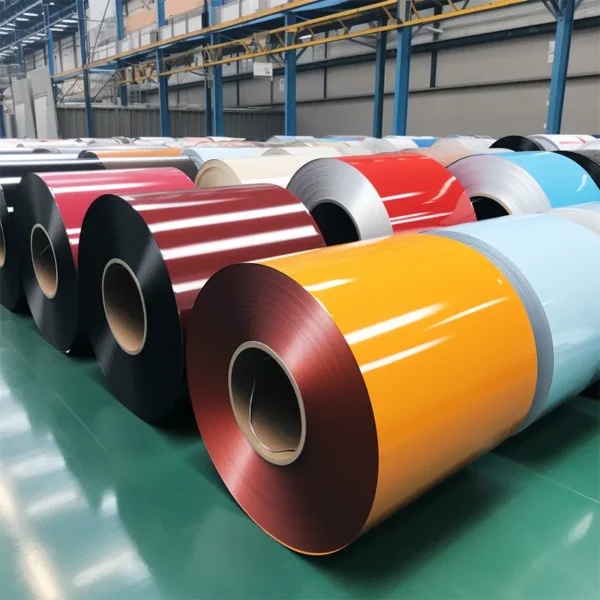

Discover the durability and stability of SGCC PPGI Steel Sheets. These solid PPGI Sheets came in a wide range of colors, and they brilliantly enhanced the structure of the project. They are easy to install as they give a seamless and beautiful look that lasts forever. They can be used for cladding, roofing, or decorative purposes.

Parameter

Wholesale rectangular steel pipe manufacturer-pre-coated GI/PPGI/PPGL color coated galvanized steel roof slab:

 Material These sheets are made from premium galvanized steel and coated with a high-quality paint finish ensuring complete protection against corrosion and harsh weather.
 Thickness  0.12-1.0mm
 Width  600-1000mm (after corrugated)
 Length  1000-12000mm
 Zinc Coating  Z40-275g/sqm
 Paint Top  15 – 35 Microns
 Paint Back  5 – 35 Microns
 Coating Color  ALL RAL Cards Color
 Coating Type  Top Painted : PVDF / HDP / SMP / PE / PU Primer Painted : Polyurethane / Epoxy / PE Back Painted : Epoxy / Modified Polyester
 Weight Per Bundle  2-5 tons

SGCC PPGI Sheets

SGCC PPGI Sheets find extensive applications across different projects and applications. The most common use of sheets is for roofing and cladding but they are not limited to it they can also be employed in agricultural structures like sheds and barns for their protective qualities against different factors.



PPGI Paint Line 1 Paint Line 2 Paint Line 3
Material Thickness 0.25 – 1.50 mm 0.25 – 1.20 mm 0,25-1,20 mm
Width 900 – 1300 mm 900 – 1300 mm 900 – 1300 mm
Coil Inner Diameter 508 mm 508 mm 508 mm
Maximum Roll Weight 11 Tons 11 Tons 11 Tons

Coming in various thicknesses (0.12-1.0mm), they can cater to diverse project needs. These sheets are flexible and their lengths can easily be customized up to 1000-1200mm, this length can offer flexibility for various applications like roofing or cladding. Their zinc coating property (240-275g/sqm) with a painted back and painted top can provide great resistance against corrosion and harsh weather. This particular property makes them ideal for outdoor projects and with their paint; they add an aesthetic feeling as it comes in different colors.



CONTINUOUSLY HOT-DIP COATED STEEL FLAT PRODUCTS FOR COLD FORMING (TS EN 10346 / TS EN 10169)
 No Steel Quality Steel Number Coating Type Chemical Composition ( % ) Max Yield Strength( N/mm2 ) Tensile Strength( N/mm2 ) Elongation ( % ) Min
C Si Mn P S
1 DX51D 1.0917 +Z 0,18 0,50 1,20 0,12 0,045 * 270-500 22
+AZ
2 DX52D 1.0918 +Z 0,12 0,50 0,60 0,10 0,05 140 – 300 270 – 420 26
+AZ
3 DX53D 1.0951 +Z 140 – 260 270 – 380 30
+AZ
4 DX54D 1.0952 +Z 120 – 220 260 – 350 36
+AZ
5 S220GD 1.0241 +Z 0,20 0,60 1,70 0,10 0,045 Min 220 Min 300 20
+AZ
6 S250GD 1.0242 +Z Min 250 Min 330 19
+AZ
7 S280GD 1.0244 +Z Min 280 Min 280 18
+AZ
8 S320GD 1.0250 +Z Min 320 Min 360 17
+AZ
9 S350GD 1.0529 +Z Min 350 Min 390 16
+AZ
10 S390GD 1.0238 +Z Min 390 Min 460 16
+AZ
11 S420GD 1.0239 +Z Min 420 Min 480 15
+AZ
12 S450GD 1.0233 +Z Min 450 Min 510 14
+AZ
13 S550GD 1.0531 +Z Min 550 Min 560
+AZ

SGCC PPGI Sheets also serve as versatile and durable materials for interior designs such as ceilings, partitions, and various furniture elements. Their seamless and smooth finish makes them a perfect set for residential, industrial, architectural, and many different projects.

Inquiry

Product

SGCC PPGI

Discover the durability and stability of SGCC PPGI Steel Sheets. These solid PPGI Sheets came in a wide range of colors, and they brilliantly enhanced the structure of the project. They are easy to install as they give a seamless and beautiful look that lasts forever. They can be used for cladding, roofing, or decorative purposes.

Parameter

Wholesale rectangular steel pipe manufacturer-pre-coated GI/PPGI/PPGL color coated galvanized steel roof slab:

 Material These sheets are made from premium galvanized steel and coated with a high-quality paint finish ensuring complete protection against corrosion and harsh weather.
 Thickness  0.12-1.0mm
 Width  600-1000mm (after corrugated)
 Length  1000-12000mm
 Zinc Coating  Z40-275g/sqm
 Paint Top  15 – 35 Microns
 Paint Back  5 – 35 Microns
 Coating Color  ALL RAL Cards Color
 Coating Type  Top Painted : PVDF / HDP / SMP / PE / PU Primer Painted : Polyurethane / Epoxy / PE Back Painted : Epoxy / Modified Polyester
 Weight Per Bundle  2-5 tons

SGCC PPGI Sheets

SGCC PPGI Sheets find extensive applications across different projects and applications. The most common use of sheets is for roofing and cladding but they are not limited to it they can also be employed in agricultural structures like sheds and barns for their protective qualities against different factors.



PPGI Paint Line 1 Paint Line 2 Paint Line 3
Material Thickness 0.25 – 1.50 mm 0.25 – 1.20 mm 0,25-1,20 mm
Width 900 – 1300 mm 900 – 1300 mm 900 – 1300 mm
Coil Inner Diameter 508 mm 508 mm 508 mm
Maximum Roll Weight 11 Tons 11 Tons 11 Tons

Coming in various thicknesses (0.12-1.0mm), they can cater to diverse project needs. These sheets are flexible and their lengths can easily be customized up to 1000-1200mm, this length can offer flexibility for various applications like roofing or cladding. Their zinc coating property (240-275g/sqm) with a painted back and painted top can provide great resistance against corrosion and harsh weather. This particular property makes them ideal for outdoor projects and with their paint; they add an aesthetic feeling as it comes in different colors.



CONTINUOUSLY HOT-DIP COATED STEEL FLAT PRODUCTS FOR COLD FORMING (TS EN 10346 / TS EN 10169)
 No Steel Quality Steel Number Coating Type Chemical Composition ( % ) Max Yield Strength( N/mm2 ) Tensile Strength( N/mm2 ) Elongation ( % ) Min
C Si Mn P S
1 DX51D 1.0917 +Z 0,18 0,50 1,20 0,12 0,045 * 270-500 22
+AZ
2 DX52D 1.0918 +Z 0,12 0,50 0,60 0,10 0,05 140 – 300 270 – 420 26
+AZ
3 DX53D 1.0951 +Z 140 – 260 270 – 380 30
+AZ
4 DX54D 1.0952 +Z 120 – 220 260 – 350 36
+AZ
5 S220GD 1.0241 +Z 0,20 0,60 1,70 0,10 0,045 Min 220 Min 300 20
+AZ
6 S250GD 1.0242 +Z Min 250 Min 330 19
+AZ
7 S280GD 1.0244 +Z Min 280 Min 280 18
+AZ
8 S320GD 1.0250 +Z Min 320 Min 360 17
+AZ
9 S350GD 1.0529 +Z Min 350 Min 390 16
+AZ
10 S390GD 1.0238 +Z Min 390 Min 460 16
+AZ
11 S420GD 1.0239 +Z Min 420 Min 480 15
+AZ
12 S450GD 1.0233 +Z Min 450 Min 510 14
+AZ
13 S550GD 1.0531 +Z Min 550 Min 560
+AZ

SGCC PPGI Sheets also serve as versatile and durable materials for interior designs such as ceilings, partitions, and various furniture elements. Their seamless and smooth finish makes them a perfect set for residential, industrial, architectural, and many different projects.
