DX51D PPGI
The galvanized painted sheet is now commonly used in industries for its protective steel properties in its zinc-coated form. DX51D PPGI Coil has a layer of protective zinc that prevents it from rusting. The corrugation enables the bending of the PPGI Steel Coils in a direction that is not parallel but perpendicular to the corrugations. The typical method is hot-dip galvanizing where the iron is immersed in the molten zinc coating on galvanized iron that prevents corrosive substances from bursting the surface of the steel underlying.
Parameter
Wholesale rectangular steel pipe manufacturer-pre-coated GI/PPGI/PPGL color coated galvanized steel roof slab：
| Material | DX51D PPGI is 0.12-1.0mm thick, 600-1000mm in width(after corrugation), and 1000-12000mm long with zinc coating of Z40-275g/sqm. It is painted on top of 15-35 Microns and the back of 5-35 Microns. The coating types include PVDF/ HDP/ SMP/ PE and PU Primer. |
| Thickness | 0.12-1.0mm |
| Width | 600-1000mm (after corrugated) |
| Length | 1000-12000mm |
| Zinc Coating | Z40-275g/sqm |
| Paint Top | 15 – 35 Microns |
| Paint Back | 5 – 35 Microns |
| Coating Color | ALL RAL Cards Color |
| Coating Type | Top Painted : PVDF / HDP / SMP / PE / PU Primer Painted : Polyurethane / Epoxy / PE Back Painted : Epoxy / Modified Polyester |
| Weight Per Bundle | 2-5 tons |

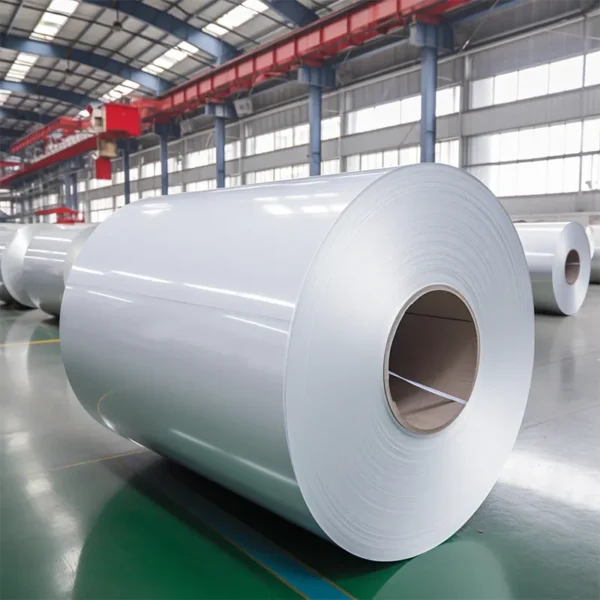

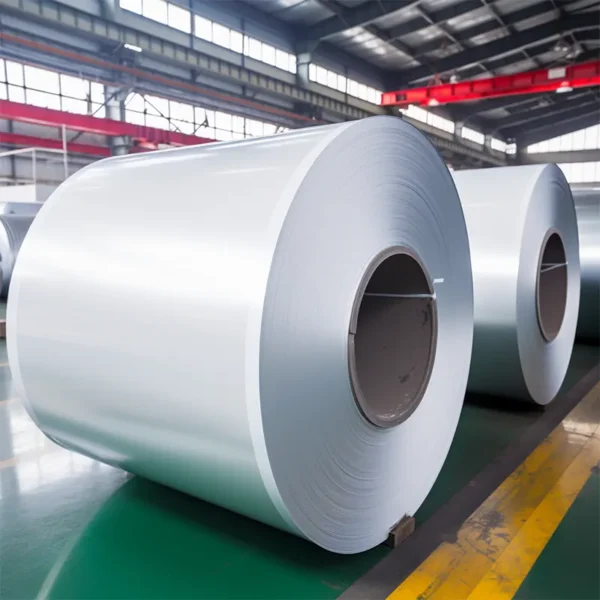

DX51D PPGI Steel Coil
DX51D PPGI Steel is lightweight (2-5 tons) and easy to transport and it has been used as building materials for many years. The roll-forming process is prolific, cost-effective, and able to be shared to the desired length.
| PPGI | Paint Line 1 | Paint Line 2 | Paint Line 3 |
| Material Thickness | 0.25 – 1.50 mm | 0.25 – 1.20 mm | 0,25-1,20 mm |
| Width | 900 – 1300 mm | 900 – 1300 mm | 900 – 1300 mm |
| Coil Inner Diameter | 508 mm | 508 mm | 508 mm |
| Maximum Roll Weight | 11 Tons | 11 Tons | 11 Tons |
It is available in different forms such as steel wire, frames, and galvanized pipes. It can be used in household appliances (computers, hair dryers. Washing machines), electrical towers, highway signs, gutter and main holes, and walls.
| CONTINUOUSLY HOT-DIP COATED STEEL FLAT PRODUCTS FOR COLD FORMING (TS EN 10346 / TS EN 10169) | |||||||||||
| No | Steel Quality | Steel Number | Coating Type | Chemical Composition ( % ) Max | Yield Strength( N/mm2 ) | Tensile Strength( N/mm2 ) | Elongation ( % ) Min | ||||
| C | Si | Mn | P | S | |||||||
| 1 | DX51D | 1.0917 | +Z | 0,18 | 0,50 | 1,20 | 0,12 | 0,045 | * | 270-500 | 22 |
| +AZ | |||||||||||
| 2 | DX52D | 1.0918 | +Z | 0,12 | 0,50 | 0,60 | 0,10 | 0,05 | 140 – 300 | 270 – 420 | 26 |
| +AZ | |||||||||||
| 3 | DX53D | 1.0951 | +Z | 140 – 260 | 270 – 380 | 30 | |||||
| +AZ | |||||||||||
| 4 | DX54D | 1.0952 | +Z | 120 – 220 | 260 – 350 | 36 | |||||
| +AZ | |||||||||||
| 5 | S220GD | 1.0241 | +Z | 0,20 | 0,60 | 1,70 | 0,10 | 0,045 | Min 220 | Min 300 | 20 |
| +AZ | |||||||||||
| 6 | S250GD | 1.0242 | +Z | Min 250 | Min 330 | 19 | |||||
| +AZ | |||||||||||
| 7 | S280GD | 1.0244 | +Z | Min 280 | Min 280 | 18 | |||||
| +AZ | |||||||||||
| 8 | S320GD | 1.0250 | +Z | Min 320 | Min 360 | 17 | |||||
| +AZ | |||||||||||
| 9 | S350GD | 1.0529 | +Z | Min 350 | Min 390 | 16 | |||||
| +AZ | |||||||||||
| 10 | S390GD | 1.0238 | +Z | Min 390 | Min 460 | 16 | |||||
| +AZ | |||||||||||
| 11 | S420GD | 1.0239 | +Z | Min 420 | Min 480 | 15 | |||||
| +AZ | |||||||||||
| 12 | S450GD | 1.0233 | +Z | Min 450 | Min 510 | 14 | |||||
| +AZ | |||||||||||
| 13 | S550GD | 1.0531 | +Z | Min 550 | Min 560 | – | |||||
| +AZ | |||||||||||
Due to their flexibility, DX51D PPGI can be used to source quality products that meet the requirements of the desired paint and length. The zinc-coated steel is famous for its durability and longevity and its structure is capable of resisting harsh weather and pounding.
