Product

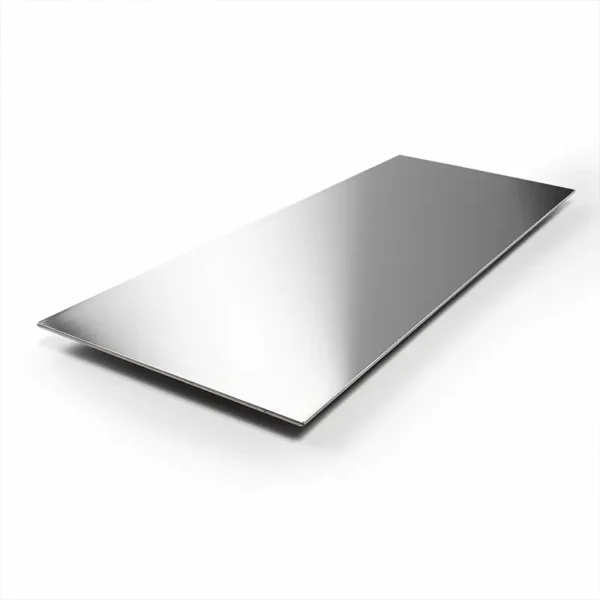

2205 Stainless Steel Plate
Our 2205 Stainless Steel Plate stands out as a high-performance duplex stainless steel because it maintains strong performance and has the best austenitic and ferritic properties. It offers nearly twice the strength of standard stainless steel plate while delivering excellent resistance to corrosion, especially in harsh environments, chemical processing, oil & gas, and structural engineering projects.
Parameter
This 2205 Stainless Steel Plate delivers long-lasting performance with exceptional durability and corrosion resistance, helping extend the service life of equipment while reducing maintenance costs. Our stainless steel plates are composed of approximately 22% chromium, 3% molybdenum, 5–6% nickel, as well as nitrogen, and have high general, localized, and crevice corrosion resistance properties. They also provide high strength and impressive impact toughness.
| Specification | Stainless Steel Plate(Hot rolled, cold rolled) |
| Standard | ASTM A240, JIS4304-2005, ASTM A167, EN10088-2-2005, GB/T3280-2007, etc |
| Material | 201, 202, 304, 304L, 304H, 309, 309s, 316, 316L, 317, 317L, 321, 321H, 310, 347, 347H, 410, 416, 420, 430, 440, 904, 904L |
| Surface | the surface and finish of stainless steel Plate:2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sandblast, Brush, etching, etc |
| Thickness | 5mm-100mm |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Brand: | Â Kuwait Origin, European Origin, Japanese Origin, US Origin, Korea Origin, Taiwan Origin |
| Manufacturer: | POSCO, Aperam, Jindal Stainless, DKC Korea, Thyssenkrup, Baosteel, TISCO, Arcelor Mittal, VDM, Nippon Metal, Outokumpu |
| Package | Standard export package, suit for all kinds of transport, or as required. |
| Grade | C (Max) | Mn (Max) | P (Max) | S (Max) | Si (Max) | Cr | Ni | Mo | Nitrogen (Max) | Cu/ Others |
| 301 | 0.15 | 2.00 | 0.045 | 0.030 | 1.00 | 16.00 – 18.00 | 6.00 – 8.00 | – | 0.10 | – |
| 304 | 0.08 | 2.00 | 0.045 | 0.030 | 0.75 | 18.00 – 20.00 | 8.00- 10.50 | – | 0.10 | – |
| 310S | 0.08 | 2.00 | 0.045 | 0.030 | 1.50 | 24.00- 26.00 | 19.00 – 22.00 | – | – | – |
| 316 | 0.08 | 2.00 | 0.045 | 0.030 | 0.75 | 16.00 – 18.00 | 10.00 – 14.00 | 2.00 – 3.00 | 0.10 | – |
| 316L | 0.030 | 2.00 | 0.045 | 0.030 | 0.75 | 16.00 – 18.00 | 10.00 – 14.00 | 2.00 – 3.00 | 0.10 | – |
| 321 | 0.08 | 2.00 | 0.045 | 0.030 | 0.75 | 17.00 – 19.00 | 9.00 – 12.00 | – | 0.10 | Ti5 ( C + N ) Min or 0.70 max |
| 409 | 0.08 | 1.00 | 0.040 | 0.010 | 1.00 | 10.50 – 11.75 | 0.50 | – | – | Ti= 6x (C+ N ) Min or 0.70 Max |
| 410 | 0.15 | 1.00 | 0.040 | 0.030 | 1.00 | 11.50- 13.50 | 0.75 | – | – | – |
| Grade | TensileStrength Mpa, (Min) | YieldStrengthMpa, (Min) | %AgeElongationin 50mmgauge length min | Hardness (Max) | |
| BHN | Rb | ||||
| 304 | 515 | 205 | 40 | 201 | 92 |
| 310S | 515 | 205 | 40 | 217 | 95 |
| 316 | 515 | 205 | 40 | 217 | 95 |
| 317 | 515 | 205 | 35 | 217 | 95 |
| 317L | 515 | 205 | 40 | 217 | 95 |
| 321 | 515 | 205 | 40 | 217 | 95 |
| 409 | 380 | 170 | 20 | 179 | 88 |
| 410S | 415 | 205 | 22 | 183 | 89 |
| 410 | 450 | 205 | 20 | 217 | 89 |
The strength of 2205 allows for thinner material use without compromising integrity, leading to lighter structures and overall cost savings. The material demonstrates exceptional capability under high chloride exposure, which allows its use in offshore systems as well as pressure vessels and heat exchangers. It provides an innovative, cost-effective solution for industries looking to improve reliability because it welds easily and shapes efficiently.
This metal finds its primary applications in bridge construction in addition to storage tank production, pulp, paper equipment fabrication, and pipeline development. Engineers and manufacturers across the globe selected this plate due to its exceptional blend of resistance to corrosion and high strength characteristics.
