Product

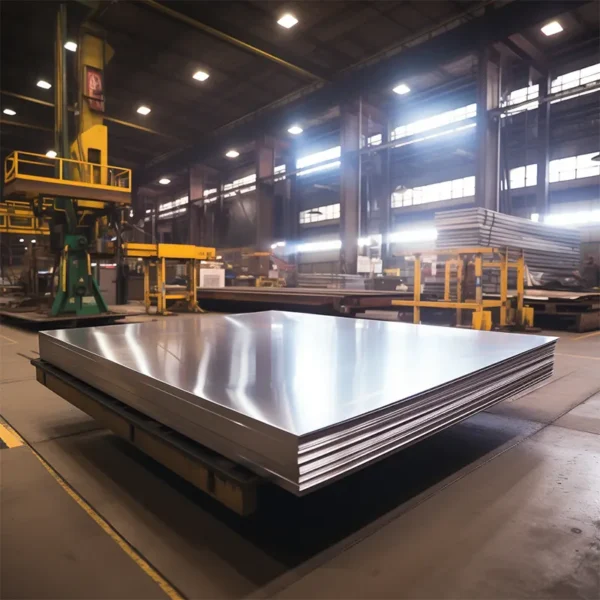

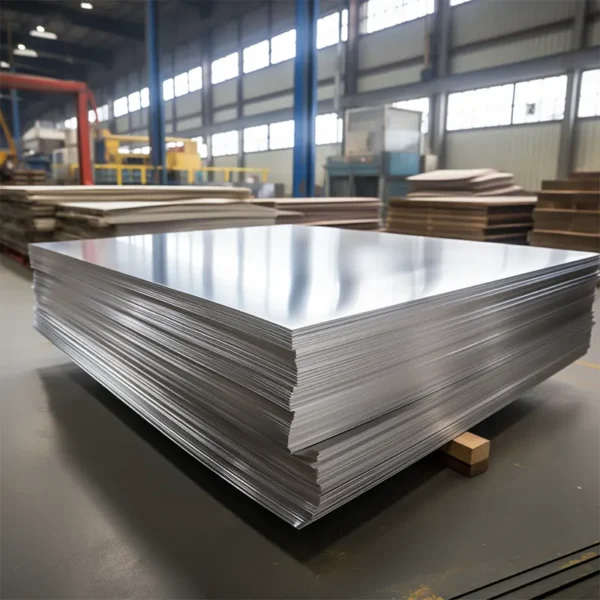

Q420C Monel/Inconel/Hardox
Place of Origin: Shanghai, China
Material: Monel/Inconel/hardox
Certifications: ISO 9001,SGS,BV
Size: Customizable
Delivery Time: 7 Days
Payment Term: T/T, L/C, WeChat pay, Alipay, etc
Our Own Factory: Competitive price and quality
Quick delivery and standard exporting package
OEM/ODM
Quick delivery
Standard Export Seaworthy Package.
Suit for all kinds of transport, or as required
Parameter
| Type | Monel/Inconel/hardox |
| Standard | GB,AISI,ASTM,DIN,EN,JIS |
| Grade | Hardox: Q345B,Q345C,Q345D,Q345E,Q390,Q390B,Q390C,Q390D,Q390E,Q420,Q420B,Q420C,Q420DQ420E,Q460,Q460D,Q500C
,Q500D,Q500E,Q550C,Q550D,Q550E,Q620C,Q620D,Q620E,Q690A,Q690B,Q690C,Q690D,Q690E,Q690D,Q690C,Q890C,Q890D16Mo3, 16MnL,16MnR ,16Mng,16MnDR HG785D,S690QL,50MN |
| Monel 400 / Monel K-500 | |
| Inconel 600 / Inconel 601 / Inconel 625 / Inconel 617 / Inconel 690 / Inconel 718 / Inconel X-750 | |
| Incoloy A-286 / Incoloy 800 / Incoloy 800H / Incoloy 800HT | |
| Incoloy 825 / Incoloy 901 / Incoloy 925 / Incoloy 926 | |
| Thickness | hot rolled 2.5mm-200mm |
| cold rolled 0.3mm – 6mm | |
| width | hot rolled 1000mm-3500mm |
| cold rolled 10mm – 2000mm | |
| Finish | 2B, NO.1, HL, NO.4, 4K, 8K, sandblast, BA |
| Inspection | TUV,BV,ABS,LR and so on |
| Application | Construction, Chemical, Pharmaceutical & Bio-Medical, Petrochemical & Refinery, Environmental, Food Processing,
Aviation, ChemicalFertilizer, Sewage Disposal, Desalination, Waste Incineration etc. |
| Processing Service | Machining : Turning / Milling / Planing / Drilling / Boring / Grinding / Gear Cutting / CNC Machining |
| Deformation processing : Bending / Cutting / Rolling / Stamping | |
| Welded | |
| Forged |
Material Specification Chart of Monel K500 Decorative Sheets
| Specifications | ASTM / ASME SB 127 |
| Size | 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm |
| Thickness | 0.1mm to 12 mm Thk |
| Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange) |
| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Steel Grade | Chemical Composition | |||||||||
| C *)(max %) | Si *)(max %) | Mn *)(max %) | P(max %) | S(max %) | Cr *)(max %) | Ni *)(max %) | Mo *)(max %) | B *)(max %) | ||
| Hardox 400 | 0.32 | 0.70 | 1.60 | 0.025 | 0.010 | 1.40 | 1.50 | 0.60 | 0.004 | |
| Hardox 450 | 0.18 | 0.25 | 1.30 | 0.015 | 0.004 | 0.10 | 0.10 | 0.04 | 0.003 | |
| Hardox 500 | 0.30 | 0.70 | 1.60 | 0.020 | 0.010 | 1.50 | 1.50 | 0.60 | 0.005 | |
| Hardox 550 | 0.37 | 0.50 | 1.30 | 0.020 | 0.010 | 1.40 | 1.40 | 0.60 | 0.004 | |
| Hardox 600 | 0.47 | 0.70 | 1.4 | 0.015 | 0.010 | 1.20 | 2.50 | 0.70 | 0.005 | |
Inconel alloys vary widely in their compositions, but all are predominantly nickel, with chromium as the second element.
| Inconel | Element, proportion by mass (%) | ||||||||||||||
| Ni | Cr | Fe | Mo | Nb & Ta | Co | Mn | Cu | Al | Ti | Si | C | S | P | B | |
| 600[18] | ≥72.0[a] | 14.0–17.0 | 6.0–10.0 | — | ≤1.0 | ≤0.5 | ≤0.5 | ≤0.15 | ≤0.015 | ||||||
| 617[19] | 44.2–61.0 | 20.0–24.0 | ≤3.0 | 8.0–10.0 | 10.0–15.0 | ≤0.5 | ≤0.5 | 0.8–1.5 | ≤0.6 | ≤0.5 | 0.05–0.15 | ≤0.015 | ≤0.015 | ≤0.006 | |
| 625[20] | ≥58.0 | 20.0–23.0 | ≤5.0 | 8.0–10.0 | 3.15–4.15 | ≤1.0 | ≤0.5 | ≤0.4 | ≤0.4 | ≤0.5 | ≤0.1 | ≤0.015 | ≤0.015 | ||
| 690[21] | ≥58 | 27–31 | 7–11 | ≤0.50 | ≤0.50 | ≤0.50 | ≤0.05 | ≤0.015 | |||||||
| Nuclear grade 690[21] | ≥58 | 28–31 | 7–11 | ≤0.10 | ≤0.50 | ≤0.50 | ≤0.50 | ≤0.04 | ≤0.015 | ||||||
| 718[2] | 50.0–55.0 | 17.0–21.0 | Balance | 2.8–3.3 | 4.75–5.5 | ≤1.0 | ≤0.35 | ≤0.3 | 0.2–0.8 | 0.65–1.15 | ≤0.35 | ≤0.08 | ≤0.015 | ≤0.015 | ≤0.006 |
| X-750[22] | ≥70.0 | 14.0–17.0 | 5.0–9.0 | 0.7–1.2 | ≤1.0 | ≤1.0 | ≤0.5 | 0.4–1.0 | 2.25–2.75 | ≤0.5 | ≤0.08 | ≤0.01 | |||
Hardox 500 steel has a fine grain structure. The table shows the maximum possible percentage of each element. Carbon, Silicium, Mangan, Chromium, Nichol, Molybdenum and Boron are alloying additives.
Based on the components used, the carbon equivalent is calculated. The table shows the limit and average values for different sheet thicknesses.
| Material thickness, mm | Max CET | Max CEV | ≈ CET | ≈ CEV |
| Sheet 2.0 – 7.0 | 0,38 | 0,49 | 0,33 | 0,45 |
| Broad-sheet rolled products 4,0 – 13,0 | 0,38 | 0,53 | 0,37 | 0,51 |
| Broad-sheet rolled products 13,1 – 19,9 | 0,43 | 0,64 | 0,41 | 0,63 |
| Broad-sheet rolled products 20,0 – 39,9 | 0,45 | 0,66 | 0,41 | 0,63 |
| Broad-sheet rolled products 40,0 – 103,0 | 0,47 | 0,75 | 0,43 | 0,72 |
Hardox plate is an abrasion resistant plate with good hardness and toughness. Compared to other steel plates, Hardox plate offers improved performance and prolonged service life in the most challenging environments. Hardox plate combines good bendability and weldability with guaranteed impact toughness.
