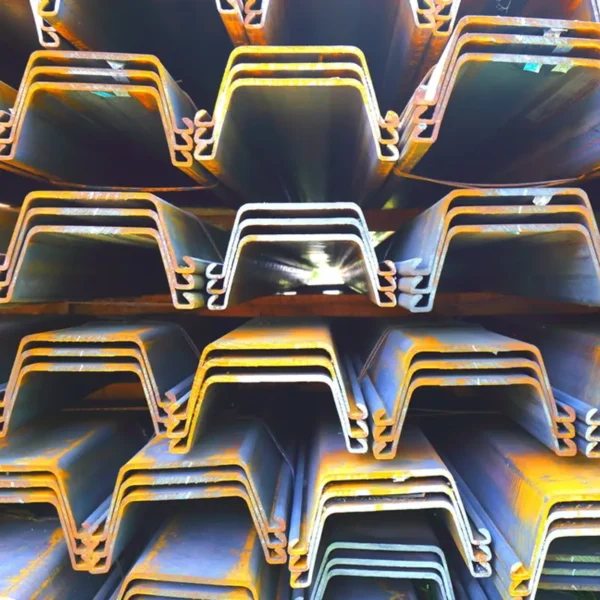

Grade60 Sheet Piles
Grade60 Sheet Piles
When you need ultimate strength and dependability, you need Grade60 Sheet Piles for your project. These piles are produced with great precision and are perfectly suited for heavy-duty tasks. It performs stability under extreme soil and water conditions. Foursteels offers affordable sheet piles for sale, which means you can go with high-quality material that in no way burns a hole in your pocket.
Parameter
High-Strength Grade60 Sheet Piles by Foursteels
What makes the Grade60 Sheet Pile different is its versatility. Standard lengths include 9, 12, 15 and 20 meters. That means you can go longer or shorter with no additional splicing, making for quicker, easier on-site installation. Versatility in the width, height and thickness provided means each order can perfectly fit into your design.
Our Grade60 Sheet Piles have the best chemical composition. It is well matched to achieve high strength and sufficient weldability. Carbon 0.26%, Manganese 1.35%, Silicon 0.40%, Phosphorus 0.04%, Sulfur 0.05%. Foursteels delivered Grade60 Sheet Piles as hot-rolled and cold-formed. Hot-rolled sections offer deep, strong interlocks, whereas cold-formed profiles provide excellent accuracy and consistent dimensions.
| Product Name | Z type cold formed steel sheet piles |
| Steel Grade | S275,S355,S390,S430,SY295,SY390,Grade50,Grade55,Grade60,A690 |
| Length | 9,12 ,15, 20m as required Max.24m |
| Dimensions | Any width x height x thickness |
| Standard | EN10249,EN10248,JIS A 5523 and JIS A 5528,ASTM A328 / ASTM A328M |
| Corner sections | Cold formed interlock or clutches |
| Installation by | Excavator hydraulic or diesel vibration hammers |
| Suppliers kind | U,Z,L,S,Pan,Flat,hat profiles |
To meet international project requirements, Foursteels manufactures Grade60 Sheet Piles using ASTM A572 Grade 60 steel, which is a high-strength, low-alloy material with a specified minimum yield strength of 415MPa and broadband tensile strength around 520MPa. This results in greater performance without the requirement for heavier sections, which provides weight and cost saving to a large project.
| All specifications products can be customized according to customer requirements | |
| Width | 400-750mm as required |
| Thickness | 6-25mm as required |
| Material | Q234B/Q345B JIS A5523/SYW295,JISA5528/SY295,SYW390,SY390 ect. |
| Shape | U,Z,L,S,Pan,Flat,hat profiles |
| Steel grade | SGCC/SGCD/SGCE/DX51D/DX52D/S250GD/S280GD/S350GD/G550/SPCC S275,S355,S390,S430,SY295,SY390,Grade50,Grade55,Grade60,A690 |
| Technique | Hot rolled |
| Standard | ASTM AISI JIS DIN EN GB Etc |
| Tolerance | ±1% |
| MOQ | 1 ton, sample order is also OK |
| Certificate | ISO CE Etc |
| Payment method | T/T, D/A, D/P, L/C, Western Union, MoneyGram or according to customer requirements |
| Application | Cofferdam /River flood diversion and control/Water treatment system fence/Flood protection Wall/Protective embankment/Coastal berm/Tunnel cuts and tunnel bunkers/Breakwater/Weir Wall/ Fixed slope/ Baffle wall |
| Package | Standard packaging, can be packaged according to customer requirements |
Our production of Grade60 has the support of international standards EN 10249, EN 10248, JIS A 5523, JIS A 5528, and ASTM A328. For contractors working in multiple countries or to strict consultant requirements, this compliance will eradicate approval process delays and increase trust in the product’s performance.
