Grade50 Sheet Piles
Grade50 Sheet Piles

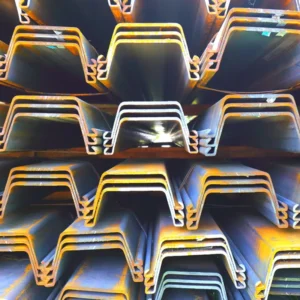

When strength, durability and hard-wearing are necessary to meet the demands, Grade50 Sheet Piles certainly are a feasible and cost-effective solution. Foursteels made them for high-strength, low-alloy(HSLA) steel ASTM A572 Grade 50; these piles also provide a yield strength of 50 ksi(345 MPa) and tensile strength of approximately 65ksi(450 MPa), while striking the perfect balance between strength and ductility. To make the sourcing process even more seamless, Buy Sheet Piles Online from Foursteels, and make the procurement process easy and guarantee on-time delivery of this high-quality product.
Parameter
Certified & Custom Grade 50 Sheet Piles by Foursteels
The chemical composition of Grade 50 is Carbon 0.23%, Manganese 1.35%, Silicon 0.15- 0.40%, Phosphorus and Sulfur ≤ 0.03%, ensuring excellent weldability, toughness, and structural stability. Our carefully balanced formula makes them highly reliable for both permanent and temporary works.
For applications with special requirements on the cross section, 900mm wide double U piles with elastic section modulus>8000cm 3mm are feasible, with each sheet pile option of GRADE50 sheet pile being offered as cold-formed or hot-rolled. Hot-rolled loads are slightly deeper, heavier and have large, wide flanges, ideal for heavy-duty use. Cold-formed are the most universally used type of interlocked sheet pile.
Specifications
| Product Name | Z type cold formed steel sheet piles |
| Steel Grade | S275,S355,S390,S430,SY295,SY390,Grade50,Grade55,Grade60,A690 |
| Length | 9,12 ,15, 20m as required Max.24m |
| Dimensions | Any width x height x thickness |
| Standard | EN10249,EN10248,JIS A 5523 and JIS A 5528,ASTM A328 / ASTM A328M |
| Corner sections | Cold formed interlock or clutches |
| Installation by | Excavator hydraulic or diesel vibration hammers |
| Suppliers kind | U,Z,L,S,Pan,Flat,hat profiles |
The extreme flexibility of Grade50 Sheet Piles is the ability to change the length. The standard production is 9, 12, 15 and 20 meters, but up to a whopping 24 meters can be ordered in maximum customization. This allows contractors to select pile length to meet the demands of their project, from reducing splices in deep foundations or working within transport limitations of urban job sites.
| All specifications products can be customized according to customer requirements | |
| Width | 400-750mm as required |
| Thickness | 6-25mm as required |
| Material | Q234B/Q345B JIS A5523/SYW295,JISA5528/SY295,SYW390,SY390 ect. |
| Shape | U,Z,L,S,Pan,Flat,hat profiles |
| Steel grade | SGCC/SGCD/SGCE/DX51D/DX52D/S250GD/S280GD/S350GD/G550/SPCC S275,S355,S390,S430,SY295,SY390,Grade50,Grade55,Grade60,A690 |
| Technique | Hot rolled |
| Standard | ASTM AISI JIS DIN EN GB Etc |
| Tolerance | ±1% |
| MOQ | 1 ton, sample order is also OK |
| Certificate | ISO CE Etc |
| Payment method | T/T, D/A, D/P, L/C, Western Union, MoneyGram or according to customer requirements |
| Application | Cofferdam /River flood diversion and control/Water treatment system fence/Flood protection Wall/Protective embankment/Coastal berm/Tunnel cuts and tunnel bunkers/Breakwater/Weir Wall/ Fixed slope/ Baffle wall |
| Package | Standard packaging, can be packaged according to customer requirements |
Purchasing through Foursteels gives the added confidence of both quality and continuity. Every order is supported by compliance with international industry standards, including EN 10249, EN 10248, JIS A 5523, JIS A 5528, and ASTM A328. This universal compliance means that the piles are an easy option for international contractors and consultants who need documentation to comply with cross-border regulations. Offering strength, durability, flexibility, and certified quality, these piles ensure peace of mind throughout the duration of your project.
