Product

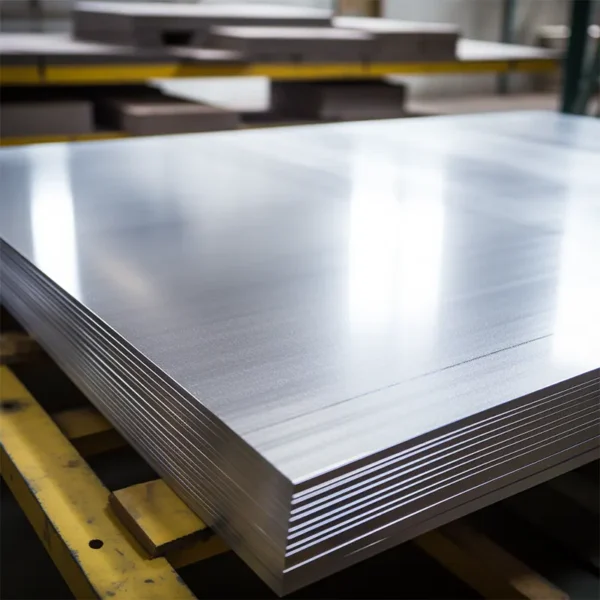

A36 Galvanized Sheet
A36 Galvanized Sheet is a versatile material that combines the structural strength of A36 steel with high corrosion resistance through zinc coating. A36 is a type of low-carbon steel, primarily composed of iron with a controlled amount of carbon of 0.25%. Other elements like copper, manganese, sulfur, and phosphorus are present in small amounts. The application area of galvanized sheet is vast ranging from manufacturing, infrastructure, automotive, and construction sectors. It is an affordable option with high performance for your construction needs.
Parameter
| Product name | Galvanized Steel Sheet |
| Standard | JIS G3321 / ASTM A792M / EN10215 |
| Grade | SGLCC/SGLCD/SGLC490/SGLC570/ CS TypeA,B,C/DS/255/DX51D/DX52D |
| Thickness | 0.12-2mm |
| Width | according to customer’s requirement |
| (usual size:1000mm,1200mm,1250mm,1500mm) | |
| Coil ID | 508mm, 610mm |
| Zinc weight | 30-600g/m2 |
| Coil weight | 5-8tons |
| Spangle | Mini/regular/big/zero spangle |
| Delivery time | Within 30 days after receipt of T/T or L/C |
| Price | FOB&CFR&CIF price |
| Application | Pre-engineered steel buildings, industrial and commercial roofing and cladding,agricultural buildings, building accessories, light steel framing,construction tubular |
With a minimum yield strength of >250MPa and tensile strength of 400-550MPa, the A36 Galvanized Sheet exhibits robust structural strength. The 23pc of elongation shows high elasticity to withstand the high pressure. These sheets also exhibit good ductility and can be easily welded, riveted, and bolted according to your construction needs. Moreover, unlike the other sheets, A36 sheets demand low maintenance, thus reducing the costs. These sheets are also available in different sizes and thicknesses, depending upon the manufacturing and construction needs. Compared to other sheets, A36 offers a good combination of versatility and durability along with cost-effectiveness. Having adhered to international standards, these sheets are safe to use.
SPECIFICATION:
| Thickness | 0.12mm-1.0mm |
| Width | 720mm, 730mm, 750mm, 762mm, 900mm, 910mm, 914mm, 1000mm, 1200mm, 1250mm |
| Length | 1830mm,2440mm, 3660mm or as per customer’s request. |
| Zinc coating | 20-180g/m2 |
| Hardness | Normal soft/Semi hard / Full Hard |
| Surface | Zero Spangle, Regular Spangle, Big Spangle |
