Product

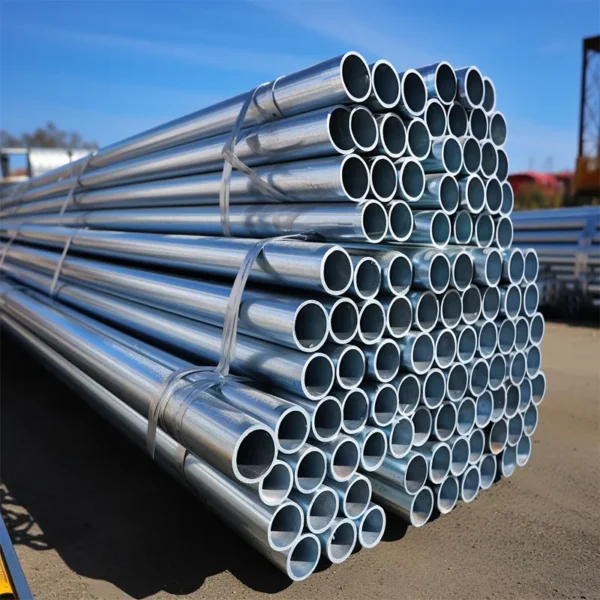

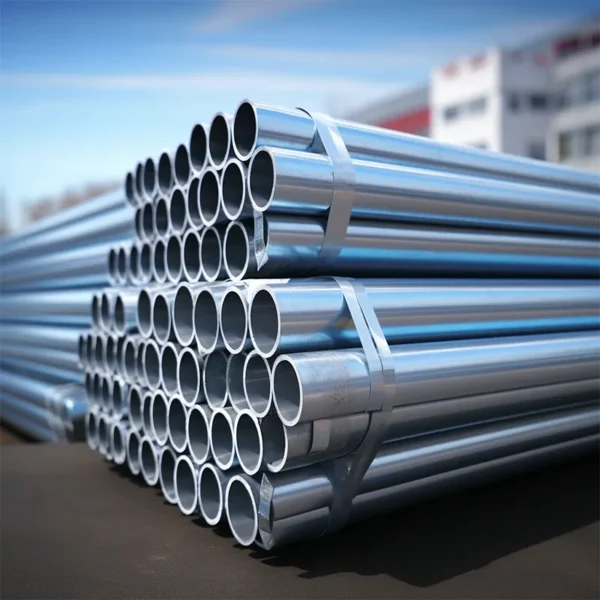

SGCC Galvanized Pipe
SGCC Galvanized Pipe is known for its exceptional durability and resistance. These galvanized pipes are made from carbon steel, which contains iron and carbon. The coating of the pipes is distinguished by the layer of zinc used in the galvanization process. Such a galvanized coating offers high corrosive resistance compared to other pipes. Besides rust, these pipes are resistant to relatively weak alkalis and acids. SGCC pipes have a tensile strength of 250-410 MPa, depending on the manufacturing process and specific grade. Their yield strength also ranges from 260 MPa to 350 MPa. Given these remarkable properties, these pipes are used in plumbing systems, construction, fencing, agricultural, and electrical applications.
Parameter
| Product Name | Galvanized Steel Round Pipe(Hot Dipped or Pre Galvanized) |
| Material | Q195 Q235 Q345 |
| Wall Thickness | 1MM~12MM as the requirement |
| Outer Diameter | 21.3MM~219.1MM |
| Length | 5m-14m,5.8m,6m,10m-12m,12m or as customer’s actual reques |
| Zinc Coating | 30g-275g |
| Technique | ERW(GALVANIZED) |
| Packing | Bundle, or with all kinds of colors PVC or as your requirements |
| Pipe Ends | Plain end/Beveled,protected by plastic caps on both ends, cut quare,grooved,threaded and coupling,etc. |
| Surface Treatment | 1. Galvanized 2. PVC,Black and color painting 3. Transparent oil,anti-rust oil 4. According to clients requirement |
| Product Application | 1. Fence, greenhouse, door pipe,greenhouse 2. Low pressure liquid, water, gas, oil, line pipe 3. For both indoor and outdoor the building construction 4. Widely used in scaffolding construction which is much cheaper and convenient |
| Origin | Shanghai China |
When it comes to the chemical composition of SGCC Galvanized Pipe, it stands tall among the other pipes. The chemical composition entails Carbon (0.12-0.22% max), Silicon (0.60-0.90%), Phosphorus (0.05%), Manganese (0.015%), and Sulfur (0.05% max) contents that make it befitting for various construction applications. The zinc coating shows a purity of 99.9%, eliciting excellent corrosion abilities. The elongation strength ranges from 22%-25%, reflecting good ductility and flexibility. SGCC pipes are available in various wall thicknesses and diameters. The tolerances adhere to industry standards such as ASTM or ISO specifications.
| Galvanized Round Steel Pipe | |||||||||
| Stabdaed:API 5L,API 5CT,ASTM A53,ASTM A500,GB9711.1 Application:To be used for conveying gas,water,and petroleum for oil and natural gas industries and use for the structural steel pipes purpose Main Steel Tube Grade:GR.A,GR.B,GR.C,Q195,Q235B,Q345B and so on. | |||||||||
| INCH | OD(MM) | Strandard Wall Thickness | |||||||
| SCH 10WT (mm) | SCH 20WT (mm) | SCH 40WT (mm） | SCH 60WT (mm) | SCH 80WT （mm) | SCH 100WT (mm) | SCH 160WT （mm) | XXS (mm) | ||
| 1/4” | 13.7 | 2.24 | 3.02 | ||||||
| 3/8” | 17.1 | 2.31 | 3.2 | ||||||
| 1/2” | 21.3 | 2.11 | 2.77 | 3.73 | 4.78 | 7.47 | |||
| 3/4″ | 26.7 | 2.11 | 2.87 | 3.91 | 5.56 | 7.82 | |||
| 1″ | 33.4 | 2.77 | 3.38 | 4.55 | 6.35 | 9.09 | |||
| 1-1/4″ | 42.2 | 2.77 | 3.56 | 4.85 | 6.35 | 9.7 | |||
| 1-1/2″ | 48.3 | 2.77 | 3.68 | 5.08 | 7.14 | 10.15 | |||
| 2″ | 60.3 | 2.77 | 3.91 | 5.54 | 8.74 | 11.07 | |||
| 2-1/2″ | 73 | 3.05 | 5.16 | 7.01 | 9.53 | 14.02 | |||
| 3″ | 88.9 | 3.05 | 5.49 | 7.62 | 11.13 | 15.24 | |||
| 3-1/2″ | 101.6 | 3.05 | 5.74 | 8.08 | |||||
| 4″ | 114.3 | 3.05 | 4.5 | 6.02 | 8.56 | 13.49 | 17.12 | ||
| 5″ | 141.3 | 3.4 | 6.55 | 9.53 | 15.88 | 19.05 | |||
| 6″ | 168.3 | 3.4 | 7.11 | 10.97 | 18.26 | 21.95 | |||
| 8″ | 219.1 | 3.76 | 6.35 | 8.18 | 10.31 | 12.7 | 15.09 | 23.01 | 22.23 |
| 10″ | 273 | 4.19 | 6.35 | 9.27 | 12.7 | 15.09 | 18.26 | 28.58 | 25.4 |
| 12″ | 323.8 | 4.57 | 6.35 | 10.31 | 14.27 | 17.48 | 21.44 | 33.32 | 25.4 |
| 14″ | 355 | 6.35 | 7.92 | 11.13 | 15.09 | 19.05 | 23.83 | 36.71 | |
| 16″ | 406 | 6.35 | 7.92 | 12.7 | 16.66 | 21.44 | 26.19 | 40.49 | |
| 18″ | 457 | 6.35 | 7.92 | 14.27 | 19.05 | 23.83 | 29.36 | 46.24 | |
| 20″ | 508 | 6.35 | 9.53 | 15.09 | 20.62 | 26.19 | 32.54 | 50.01 | |
| 22″ | 559 | 6.35 | 9.53 | 22.23 | 28.58 | 34.93 | 54.98 | ||
| 24″ | 610 | 6.35 | 9.53 | 17.48 | 24.61 | 30.96 | 38.89 | 59.54 | |
| 26″ | 660 | 7.92 | 12.7 | ||||||
| 28″ | 711 | 7.92 | 12.7 | ||||||
| 30″ | 762 | 7.92 | 12.7 | ||||||
| 32″ | 813 | 7.92 | 12.7 | 17.48 | |||||
| 34″ | 863 | 7.92 | 12.7 | 17.48 | |||||
| 36″ | 914 | 7.92 | 12.7 | 19.05 | |||||
| 38″ | 965 | ||||||||
| 40″ | 1016 | ||||||||
| 42″ | 1066 | ||||||||
| 44″ | 1117 | ||||||||
| 46″ | 1168 | ||||||||
| 48″ | 1219 | ||||||||
