Product

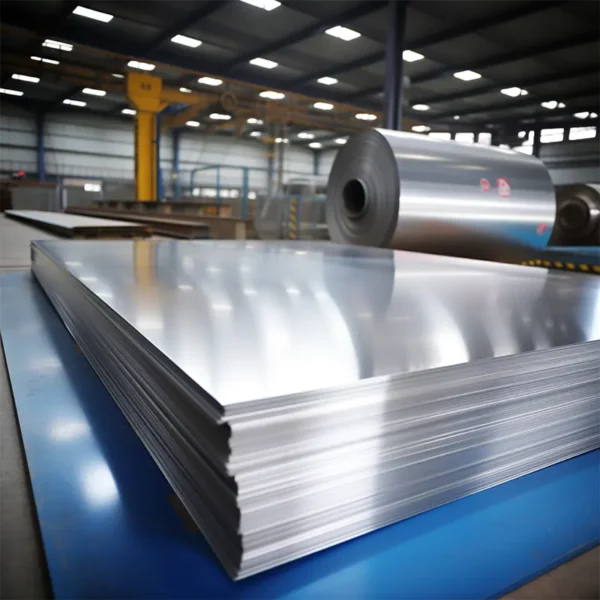

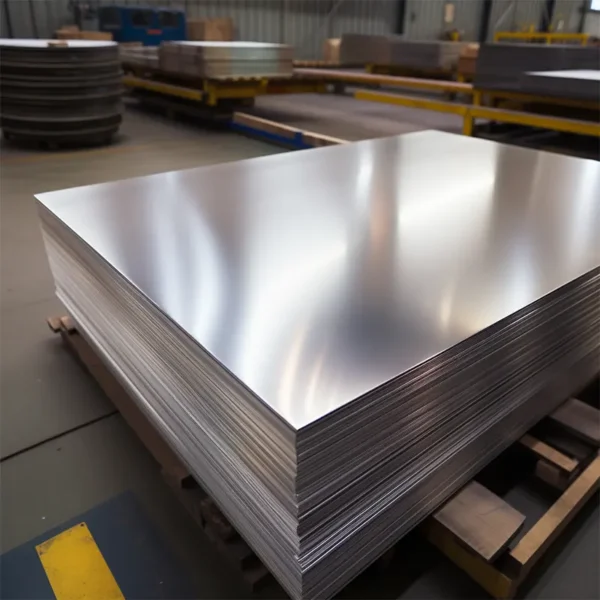

Q345D Monel/Inconel/Hardox

Place of Origin: Shanghai, China

Material: Monel/Inconel/hardox

Certifications: ISO 9001,SGS,BV

Size: Customizable

Delivery Time: 7 Days

Payment Term: T/T, L/C, WeChat pay, Alipay, etc

Our Own Factory: Competitive price and quality

Quick delivery and standard exporting package

OEM/ODM

Quick delivery

Standard Export Seaworthy Package.

Suit for all kinds of transport, or as required

Parameter

Type Monel/Inconel/hardox
Standard GB,AISI,ASTM,DIN,EN,JIS
Grade Hardox: Q345B,Q345C,Q345D,Q345E,Q390,Q390B,Q390C,Q390D,Q390E,Q420,Q420B,Q420C,Q420DQ420E,Q460,Q460D,Q500C

,Q500D,Q500E,Q550C,Q550D,Q550E,Q620C,Q620D,Q620E,Q690A,Q690B,Q690C,Q690D,Q690E,Q690D,Q690C,Q890C,Q890D16Mo3,

16MnL,16MnR ,16Mng,16MnDR HG785D,S690QL,50MN

Monel 400 / Monel K-500
Inconel 600 / Inconel 601 / Inconel 625 / Inconel 617 / Inconel 690 / Inconel 718 / Inconel X-750
Incoloy A-286 / Incoloy 800 / Incoloy 800H / Incoloy 800HT
Incoloy 825 / Incoloy 901 / Incoloy 925 / Incoloy 926
Thickness hot rolled 2.5mm-200mm
cold rolled 0.3mm – 6mm
width hot rolled 1000mm-3500mm
cold rolled 10mm – 2000mm
Finish 2B, NO.1, HL, NO.4, 4K, 8K, sandblast, BA
Inspection TUV,BV,ABS,LR and so on
Application Construction, Chemical, Pharmaceutical & Bio-Medical, Petrochemical & Refinery, Environmental, Food Processing,

Aviation, ChemicalFertilizer, Sewage Disposal, Desalination, Waste Incineration etc.

Processing Service Machining : Turning / Milling / Planing / Drilling / Boring / Grinding / Gear Cutting / CNC Machining
Deformation processing : Bending / Cutting / Rolling / Stamping
Welded
Forged



Material Specification Chart of Monel K500 Decorative Sheets

Specifications ASTM / ASME SB 127
Size 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm
Thickness 0.1mm to 12 mm Thk
Form Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange)
Finish Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Hardness Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.



Steel Grade Chemical Composition
C *)(max %) Si *)(max %) Mn *)(max %) P(max %) S(max %) Cr *)(max %) Ni *)(max %) Mo *)(max %) B *)(max %)
Hardox 400 0.32 0.70 1.60 0.025 0.010 1.40 1.50 0.60 0.004
Hardox 450 0.18 0.25 1.30 0.015 0.004 0.10 0.10 0.04 0.003
Hardox 500 0.30 0.70 1.60 0.020 0.010 1.50 1.50 0.60 0.005
Hardox 550 0.37 0.50 1.30 0.020 0.010 1.40 1.40 0.60 0.004
Hardox 600 0.47 0.70 1.4 0.015 0.010 1.20 2.50 0.70 0.005



Inconel alloys vary widely in their compositions, but all are predominantly nickel, with chromium as the second element.

Inconel Element, proportion by mass (%)
Ni Cr Fe Mo Nb & Ta Co Mn Cu Al Ti Si C S P B
600[18] ≥72.0[a] 14.0–17.0 6.0–10.0 ≤1.0 ≤0.5 ≤0.5 ≤0.15 ≤0.015
617[19] 44.2–61.0 20.0–24.0 ≤3.0 8.0–10.0 10.0–15.0 ≤0.5 ≤0.5 0.8–1.5 ≤0.6 ≤0.5 0.05–0.15 ≤0.015 ≤0.015 ≤0.006
625[20] ≥58.0 20.0–23.0 ≤5.0 8.0–10.0 3.15–4.15 ≤1.0 ≤0.5 ≤0.4 ≤0.4 ≤0.5 ≤0.1 ≤0.015 ≤0.015
690[21] ≥58 27–31 7–11 ≤0.50 ≤0.50 ≤0.50 ≤0.05 ≤0.015
Nuclear grade 690[21] ≥58 28–31 7–11 ≤0.10 ≤0.50 ≤0.50 ≤0.50 ≤0.04 ≤0.015
718[2] 50.0–55.0 17.0–21.0 Balance 2.8–3.3 4.75–5.5 ≤1.0 ≤0.35 ≤0.3 0.2–0.8 0.65–1.15 ≤0.35 ≤0.08 ≤0.015 ≤0.015 ≤0.006
X-750[22] ≥70.0 14.0–17.0 5.0–9.0 0.7–1.2 ≤1.0 ≤1.0 ≤0.5 0.4–1.0 2.25–2.75 ≤0.5 ≤0.08 ≤0.01



Hardox 500 steel has a fine grain structure. The table shows the maximum possible percentage of each element. Carbon, Silicium, Mangan, Chromium, Nichol, Molybdenum and Boron are alloying additives.



Based on the components used, the carbon equivalent is calculated. The table shows the limit and average values for different sheet thicknesses.



Material thickness, mm Max CET Max CEV ≈ CET ≈ CEV
Sheet 2.0 – 7.0 0,38 0,49 0,33 0,45
Broad-sheet rolled products 4,0 – 13,0 0,38 0,53 0,37 0,51
Broad-sheet rolled products 13,1 – 19,9 0,43 0,64 0,41 0,63
Broad-sheet rolled products 20,0 – 39,9 0,45 0,66 0,41 0,63
Broad-sheet rolled products 40,0 – 103,0 0,47 0,75 0,43 0,72



Hardox plate is an abrasion resistant plate with good hardness and toughness. Compared to other steel plates, Hardox plate offers improved performance and prolonged service life in the most challenging environments. Hardox plate combines good bendability and weldability with guaranteed impact toughness.
