Product

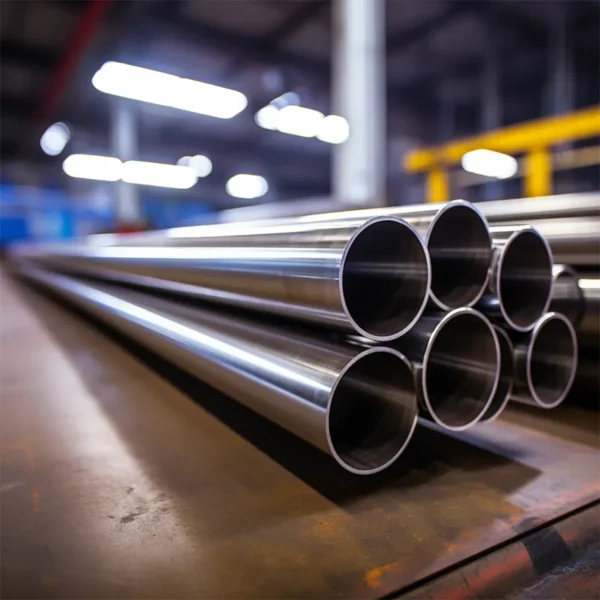

Monel K500 Alloy Pipe
Place of Origin: Shanghai, China
Material: Monel/Inconel/hardox
Certifications: ISO 9001,SGS,BV
Size: Customizable
Delivery Time: 7 Days
Payment Term: T/T, L/C, WeChat pay, Alipay, etc
Our Own Factory: Competitive price and quality
Quick delivery and standard exporting package
OEM/ODM
Quick delivery
Standard Export Seaworthy Package.
Suit for all kinds of transport, or as required
Parameter
MONEL alloy K-500 (UNS N05500) is a nickel-copper alloy which combines the excellent corrosion resistance of MONEL alloy 400 with the added advantages of greater strength and hardness. The increased properties are obtained by adding aluminum and titanium to the nickel-copper base, and by heating under controlled conditions so that submicroscopic particles of Ni3 (Ti, Al) are precipitated throughout the matrix. The thermal processing used to effect precipitation is commonly called age hardening or aging
Products Description
| Product Name | Monel K500 Alloy Pipe/Tube (UNS N05500) | |
| Type | Seamless and welding pipe/tube | |
| Shape | Round pipe, Square pipe, Rectangular pipe | |
| Grade | Inconel 600, Inconel 601, Inconel 625, Inconel 617, Inconel 690, Inconel 718, Inconel X-750 | |
| Incoloy A-286, Incoloy 800, Incoloy 800H, Incoloy 800HT
Incoloy 825, Incoloy 901, Incoloy 925, Incoloy 926 |
||
| Monel 400, Monel K-500 | ||
| Hastelloy C22, Hastelloy C-276, Hastelloy B-2, Hastelloy B-3, Hastelloy X | ||
| Outside Diameter | 6mm-630mm(seamless pipe)
9.5mm-1200mm(welding pipe) or as customer’s requirement |
|
| Wall Thickness | 2.5mm-30mm(seamless pipe)
20.5mm-20mm(welding pipe) or as customer’s requirement |
|
| Length | 6M & as customer’s requirement | |
| Specifications | ASTM, ASME, UNS, JIS, EN, AFNOR | |
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K,Pickling/Polished/Satin/Hairline/Mirror Finish etc. | |
| Processing Service | Machining: Turning/Milling/Planing/Drilling/Boring/Grinding/Gear Cutting/CNC Machining
Deformation processing: Bending / Cutting / Rolling / Stamping |
|
| Delivery time | 10-30 days subject to the clients’ requirement and quantity | |
| Package | clients’ requirement and Standard export sea-worthy packing | |
| MOQ | 1 ton | |
Chemical Composition
| Alloy | element | C | Si | Mn | S | Ni | Cr | Al | Ti | Fe | Cu |
| Monel K500 | Min | 63.0 | 2.3 | 0.35 | 27.0 | ||||||
| Max | 0.25 | 0.5 | 1.5 | 0.01 | 3.15 | 0.85 | 2.0 | 33.0 |
Physical Properties
| Density | Melting Range | Tensile Strength | Yield Strength | Elongation |
| 8.05G/CM3 | 1288-1343℃ | RM N/mm² | RPO.2 N/mm² | A5% |
| 960 | 690 | 20 |
