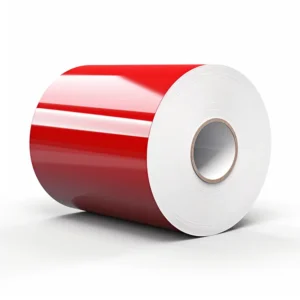

JIS G3312-CGCC PPGI
JIS G3312-CGCC PPGI offer unmatched durability and beautiful appeal for a wide range of applications. These sheets have resistance to corrosion with a top-quality painted finish. They go through a careful procedure that removes contaminants. The molten zinc after hot-dip galvanization can form a coating layer against corrosion. After that, high-quality paint is applied which is 15-35 Microns on top and 5-35 Microns on the back can enhance adhesion which will also protect environmental factors. This is just not protection against corrosion but also adds vibrant color options making PPGI Steel a perfect choice for cladding, roofing, and other applications.
Parameter
Wholesale rectangular steel pipe manufacturer-pre-coated GI/PPGI/PPGL color coated galvanized steel roof slab：
| Material | Made from carbon steel and coated with a thick layer of zinc which provides resistance against corrosion. They can serve as cladding and roofing materials as they are durable and provide great stability against harsh weather conditions. |
| Thickness | 0.12-1.0mm |
| Width | 600-1000mm (after corrugated) |
| Length | 1000-12000mm |
| Zinc Coating | Z40-275g/sqm |
| Paint Top | 15 – 35 Microns |
| Paint Back | 5 – 35 Microns |
| Coating Color | ALL RAL Cards Color |
| Coating Type | Top Painted : PVDF / HDP / SMP / PE / PU Primer Painted : Polyurethane / Epoxy / PE Back Painted : Epoxy / Modified Polyester |
| Weight Per Bundle | 2-5 tons |
JIS G3312-CGCC PPGI
The thickness of JIS G3312-CGCC PPGI offers durability and strength. Thick sheets offer magnificent structural solidity to bending or denting making them the perfect choice for roofing or structural components.
| PPGI | Paint Line 1 | Paint Line 2 | Paint Line 3 |
| Material Thickness | 0.25 – 1.50 mm | 0.25 – 1.20 mm | 0,25-1,20 mm |
| Width | 900 – 1300 mm | 900 – 1300 mm | 900 – 1300 mm |
| Coil Inner Diameter | 508 mm | 508 mm | 508 mm |
| Maximum Roll Weight | 11 Tons | 11 Tons | 11 Tons |
JIS G3312-CGCC PPGI is 1000-1200mm long and 600-1000mm in width which can reduce the number of seams while installing and improving the overall structure and minimizing the leakage in roofing.
| CONTINUOUSLY HOT-DIP COATED STEEL FLAT PRODUCTS FOR COLD FORMING (TS EN 10346 / TS EN 10169) | |||||||||||
| No | Steel Quality | Steel Number | Coating Type | Chemical Composition ( % ) Max | Yield Strength( N/mm2 ) | Tensile Strength( N/mm2 ) | Elongation ( % ) Min | ||||
| C | Si | Mn | P | S | |||||||
| 1 | DX51D | 1.0917 | +Z | 0,18 | 0,50 | 1,20 | 0,12 | 0,045 | * | 270-500 | 22 |
| +AZ | |||||||||||
| 2 | DX52D | 1.0918 | +Z | 0,12 | 0,50 | 0,60 | 0,10 | 0,05 | 140 – 300 | 270 – 420 | 26 |
| +AZ | |||||||||||
| 3 | DX53D | 1.0951 | +Z | 140 – 260 | 270 – 380 | 30 | |||||
| +AZ | |||||||||||
| 4 | DX54D | 1.0952 | +Z | 120 – 220 | 260 – 350 | 36 | |||||
| +AZ | |||||||||||
| 5 | S220GD | 1.0241 | +Z | 0,20 | 0,60 | 1,70 | 0,10 | 0,045 | Min 220 | Min 300 | 20 |
| +AZ | |||||||||||
| 6 | S250GD | 1.0242 | +Z | Min 250 | Min 330 | 19 | |||||
| +AZ | |||||||||||
| 7 | S280GD | 1.0244 | +Z | Min 280 | Min 280 | 18 | |||||
| +AZ | |||||||||||
| 8 | S320GD | 1.0250 | +Z | Min 320 | Min 360 | 17 | |||||
| +AZ | |||||||||||
| 9 | S350GD | 1.0529 | +Z | Min 350 | Min 390 | 16 | |||||
| +AZ | |||||||||||
| 10 | S390GD | 1.0238 | +Z | Min 390 | Min 460 | 16 | |||||
| +AZ | |||||||||||
| 11 | S420GD | 1.0239 | +Z | Min 420 | Min 480 | 15 | |||||
| +AZ | |||||||||||
| 12 | S450GD | 1.0233 | +Z | Min 450 | Min 510 | 14 | |||||
| +AZ | |||||||||||
| 13 | S550GD | 1.0531 | +Z | Min 550 | Min 560 | – | |||||
| +AZ | |||||||||||
It is also used in automotive manufacturing such as body panels and chassis parts. They are excellent rust resistant so they are the ideal choice for appliances like washing machines and refrigerators. They are an excellent choice and act as a cost-effective solution for structures and products requiring longevity and strength to environmental factors.
