Product

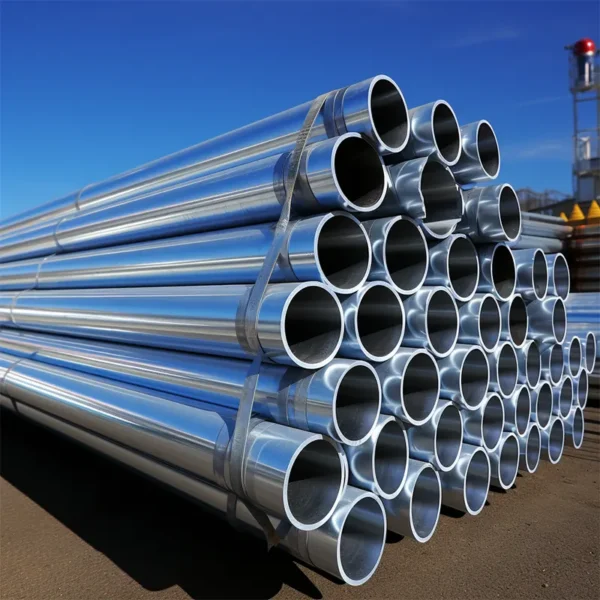

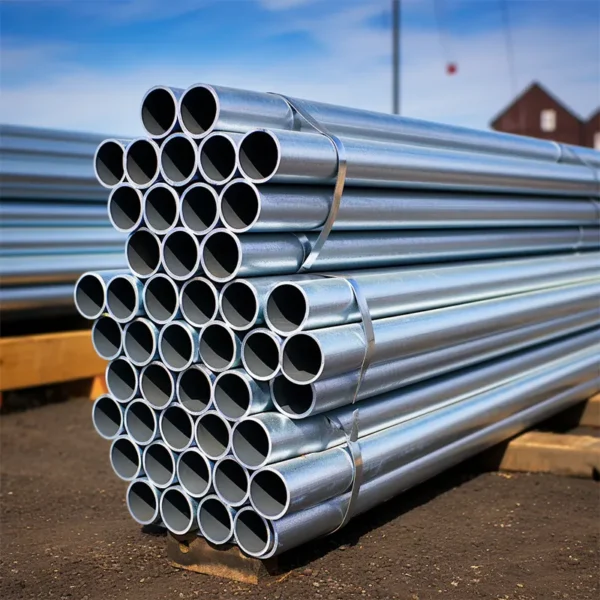

HC340LA Galvanized Pipe
Are you looking for a pipe that exudes high durability, strength, and rust resistance?
HC340LA Galvanized Pipe can do wonders. The galvanized zinc coating protects the pipes from oxidation and rustic conditions. The Galvanized Pipe is widely used in different industries ranging from construction, engineering, manufacturing, HVAC systems, and Automotive. Their physical properties are highly impressive. With the tensile and yield strength of 460MPa and 380MPa respectively, these pipes offer high structural strength as compared to other pipes. The Elongation values usually range from 19-22%, reflecting good ductility. Unlike other steels, its Modulus of Elasticity is around 210GPa with a thermal conductivity of 45W/mK. The hardness of the pipes also varies, generally, it is around 110-155HB.
Parameter
| Product Name | Galvanized Steel Round Pipe(Hot Dipped or Pre Galvanized) |
| Material | Q195 Q235 Q345 |
| Wall Thickness | 1MM~12MM as the requirement |
| Outer Diameter | 21.3MM~219.1MM |
| Length | 5m-14m,5.8m,6m,10m-12m,12m or as customer’s actual reques |
| Zinc Coating | 30g-275g |
| Technique | ERW(GALVANIZED) |
| Packing | Bundle, or with all kinds of colors PVC or as your requirements |
| Pipe Ends | Plain end/Beveled,protected by plastic caps on both ends, cut quare,grooved,threaded and coupling,etc. |
| Surface Treatment | 1. Galvanized 2. PVC,Black and color painting 3. Transparent oil,anti-rust oil 4. According to clients requirement |
| Product Application | 1. Fence, greenhouse, door pipe,greenhouse 2. Low pressure liquid, water, gas, oil, line pipe 3. For both indoor and outdoor the building construction 4. Widely used in scaffolding construction which is much cheaper and convenient |
| Origin | Shanghai China |
HC340LA Galvanized Pipe is also the talk of the town due to its low carbon content (0.12%) that offers good formability and weldability. Other chemical contents include Sulfur (0.016%), Aluminum (0.015%), Phosphorus (0.025%), and Titanium (0.15%). The thickness of the zinc coating also varies from 25-110 microns. HC340LA offers good fatigue resistance due to the controlled presence of alloys and the galvanization process. The making of these pipes also adheres to international standards. Whether you are involved in plumbing, construction, or manufacturing, the utilization of these pipes will stand the test of time.
| Galvanized Round Steel Pipe | |||||||||
| Stabdaed:API 5L,API 5CT,ASTM A53,ASTM A500,GB9711.1 Application:To be used for conveying gas,water,and petroleum for oil and natural gas industries and use for the structural steel pipes purpose Main Steel Tube Grade:GR.A,GR.B,GR.C,Q195,Q235B,Q345B and so on. | |||||||||
| INCH | OD(MM) | Strandard Wall Thickness | |||||||
| SCH 10WT (mm) | SCH 20WT (mm) | SCH 40WT (mm） | SCH 60WT (mm) | SCH 80WT （mm) | SCH 100WT (mm) | SCH 160WT （mm) | XXS (mm) | ||
| 1/4” | 13.7 | 2.24 | 3.02 | ||||||
| 3/8” | 17.1 | 2.31 | 3.2 | ||||||
| 1/2” | 21.3 | 2.11 | 2.77 | 3.73 | 4.78 | 7.47 | |||
| 3/4″ | 26.7 | 2.11 | 2.87 | 3.91 | 5.56 | 7.82 | |||
| 1″ | 33.4 | 2.77 | 3.38 | 4.55 | 6.35 | 9.09 | |||
| 1-1/4″ | 42.2 | 2.77 | 3.56 | 4.85 | 6.35 | 9.7 | |||
| 1-1/2″ | 48.3 | 2.77 | 3.68 | 5.08 | 7.14 | 10.15 | |||
| 2″ | 60.3 | 2.77 | 3.91 | 5.54 | 8.74 | 11.07 | |||
| 2-1/2″ | 73 | 3.05 | 5.16 | 7.01 | 9.53 | 14.02 | |||
| 3″ | 88.9 | 3.05 | 5.49 | 7.62 | 11.13 | 15.24 | |||
| 3-1/2″ | 101.6 | 3.05 | 5.74 | 8.08 | |||||
| 4″ | 114.3 | 3.05 | 4.5 | 6.02 | 8.56 | 13.49 | 17.12 | ||
| 5″ | 141.3 | 3.4 | 6.55 | 9.53 | 15.88 | 19.05 | |||
| 6″ | 168.3 | 3.4 | 7.11 | 10.97 | 18.26 | 21.95 | |||
| 8″ | 219.1 | 3.76 | 6.35 | 8.18 | 10.31 | 12.7 | 15.09 | 23.01 | 22.23 |
| 10″ | 273 | 4.19 | 6.35 | 9.27 | 12.7 | 15.09 | 18.26 | 28.58 | 25.4 |
| 12″ | 323.8 | 4.57 | 6.35 | 10.31 | 14.27 | 17.48 | 21.44 | 33.32 | 25.4 |
| 14″ | 355 | 6.35 | 7.92 | 11.13 | 15.09 | 19.05 | 23.83 | 36.71 | |
| 16″ | 406 | 6.35 | 7.92 | 12.7 | 16.66 | 21.44 | 26.19 | 40.49 | |
| 18″ | 457 | 6.35 | 7.92 | 14.27 | 19.05 | 23.83 | 29.36 | 46.24 | |
| 20″ | 508 | 6.35 | 9.53 | 15.09 | 20.62 | 26.19 | 32.54 | 50.01 | |
| 22″ | 559 | 6.35 | 9.53 | 22.23 | 28.58 | 34.93 | 54.98 | ||
| 24″ | 610 | 6.35 | 9.53 | 17.48 | 24.61 | 30.96 | 38.89 | 59.54 | |
| 26″ | 660 | 7.92 | 12.7 | ||||||
| 28″ | 711 | 7.92 | 12.7 | ||||||
| 30″ | 762 | 7.92 | 12.7 | ||||||
| 32″ | 813 | 7.92 | 12.7 | 17.48 | |||||
| 34″ | 863 | 7.92 | 12.7 | 17.48 | |||||
| 36″ | 914 | 7.92 | 12.7 | 19.05 | |||||
| 38″ | 965 | ||||||||
| 40″ | 1016 | ||||||||
| 42″ | 1066 | ||||||||
| 44″ | 1117 | ||||||||
| 46″ | 1168 | ||||||||
| 48″ | 1219 | ||||||||
