Product

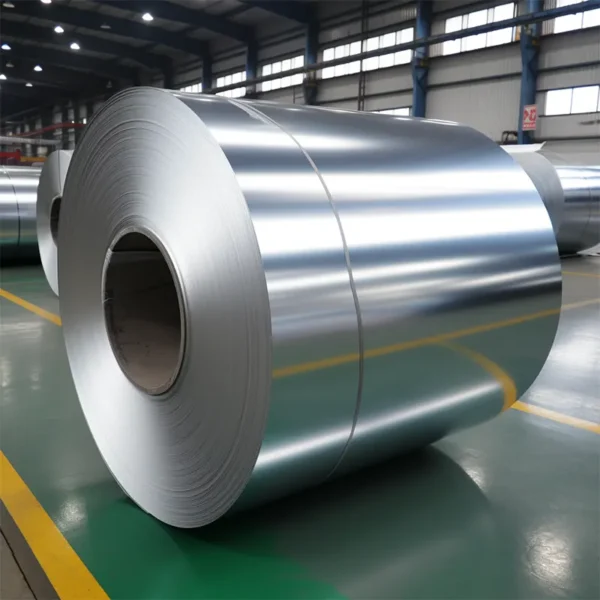

DX53D Galvanized Coil
Place of Origin: Shanghai, China
Product Type: Galvanized Steel Coil
Product Standard: GB/T-2518, JIS G 3302, EN 10142/10427, ASTM A 653
Product Material: SGCC,S350GD+Z,S550GD+Z,DX51D,DX52D,DX53D
Product Thickness: 0.14-1.5mm
Parameter
| Product name | Galvanized steel Coil |
| Galvanized steel Coil | ASTM,EN ,JIS ，GB |
| Grade | Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490,SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQCR80(550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550); or Customer’s Requirement |
| Thickness | 0.10-2mm can customized accordingly your requirement |
| Width | 600mm-1500mm, according to customer’s requirement |
| Technical | Hot Dipped Galvanized coil |
| Zinc Coating | 30-275g/m2 |
| Surface Treatment | Passivation, Oiling, Lacquer sealing, Phosphating, Untreated |
| Surface | regular spangle,misi spangle, bright |
| Coil Weight | 2-15metric ton per coil |
| Package | Water proof paper is inner packing,galvanized steel or coated steel sheet is outer packing , side guard plate,then wrapped byseven steel belt.or according to customer’s requirement |
| Application | structure construction,steel grating, tools |
Galvanized coil
Galvanized steel is a type of steel that has been coated with zinc to prevent corrosion. Galvanized steel coils are made of high-quality steel substrates and processed by continuous hot-dip galvanizing.
The galvanizing process involves dipping steel strip into a bath of molten zinc. The zinc layer adheres tightly to the steel surface for excellent corrosion resistance and durability. The thickness of the galvanized layer can vary depending on the application of the galvanized steel coil.
Here are some important details about Galvanized Steel Coil:
– Galvanized steel coils of different thickness and width can be produced according to customer requirements.
– Galvanized steel coils can be produced in different grades of steel such as high strength low alloy (HSLA) steel, carbon steel and stainless steel.
– Galvanized steel coils are used in a wide variety of applications including automotive, construction, industrial and agricultural.
– Galvanized steel coil has good formability, weldability and paintability, making it a versatile material for a variety of applications.
– Galvanized steel coils can be pre-painted or additionally coated to enhance their performance in specific applications.
– Galvanized steel coils are an economical and sustainable option for many industries as they have a long service life and can be recycled at the end of their useful life.
SPECIFICATION
| THICKNESS | 0.11mm-5.0mm |
| WIDTH | 600-1250mm Max |
| COATING MASS | 20g-400g/m2 |
| Surface Structure | Zero Spangle,Regular Spangle,Minimized Spangle |
| SURFACE TREATMENT | Chromated/non-Chromated,Oiled/non-Oiled,skinpassed/non-skinpassed |
| COIL INNNER DIAMETER | 508mm or 610mm |
STANDARD & GRADE
| HOT-DIP GALVANIZED STEEL COILS | ||||
| ASTM A653M-06a | EN10327:2004/10326:2004 | JIS G 3302-2010 | AS-NZS 4534-2006 | |
| Commercial Quality | CS | DX51D+Z | SGCC | G1+Z |
| STRUCTURE STEEL | SS GRADE 230 | S220GD+Z | SGC340 | G250+Z |
| SS GRADE 255 | S250GD+Z | SGC400 | G330+Z | |
| SS GRADE 275 | S280GD+Z | SGC440 | G350+Z | |
| SS GRADE 340 | S320GD+Z | SGC490 | G450+Z | |
| SS GRADE 550 | S350GD+Z | SGC570 | G500+Z | |
| S550GD+Z | G550+Z | |||
