Product

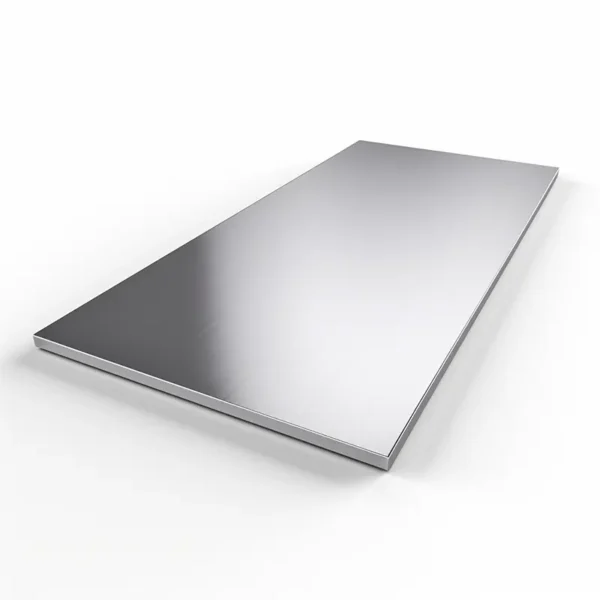

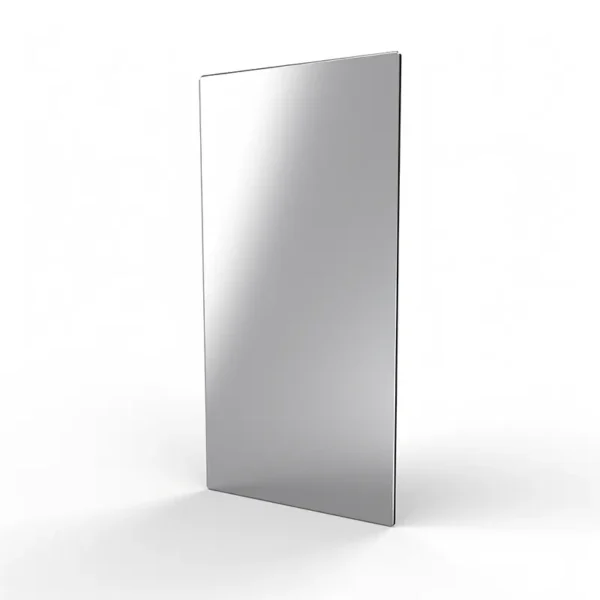

904L Stainless Steel Plate
904L Stainless Steel Plate functions as austenitic stainless steel, which delivers exceptional corrosion resistance in caustic conditions. Its unique alloy structure and minimal carbon levels in steel plate grant extraordinary protection against acids, chlorides, and harsh chemicals, thus catering to demanding industrial requirements. Our Stainless Steel Plate extends its structural integrity through demanding corrosive environments because it possesses superior strength. When compared to typical stainless steel materials, it needs minimal upkeep to operate reliability for extended periods. The material excels in specialized industrial applications because it has nonmagnetic properties, good weldability, and high-temperature resistance capabilities.
Parameter
904L Stainless Steel Plates Sizes, Shapes & Specification
904L Stainless Steel Plate is known for its corrosion resistance. It consists of Iron Balance, Chromium 19.00 – 23.00%, Nickel 23.00 – 28.00%, Molybdenum 4.00 – 5.00%, Copper 1.00 – 2.00%, Manganese 2.00%, Silicon 1.00%, Carbon 0.02%, Phosphorus 0.045% and Sulfur 0.035%.
Specification | Stainless Steel Plate(Hot rolled, cold rolled) |
Standard | ASTM A240, JIS4304-2005, ASTM A167, EN10088-2-2005, GB/T3280-2007, etc |
Material | 201, 202, 304, 304L, 304H, 309, 309s, 316, 316L, 317, 317L, 321, 321H, 310, 347, 347H, 410, 416, 420, 430, 440, 904, 904L |
Surface | the surface and finish of stainless steel Plate:2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sandblast, Brush, etching, etc |
Thickness | 5mm-100mm |
Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
Brand: | Â Kuwait Origin, European Origin, Japanese Origin, US Origin, Korea Origin, Taiwan Origin |
Manufacturer: | POSCO, Aperam, Jindal Stainless, DKC Korea, Thyssenkrup, Baosteel, TISCO, Arcelor Mittal, VDM, Nippon Metal, Outokumpu |
Package | Standard export package, suit for all kinds of transport, or as required. |
Industries and Applications We Serve
Various industries use this steel plate extensively because of its outstanding corrosion and oxidation protection properties. It is used extensively in chemical processing facilities where personnel work with powerful acids combined with abrasive chemicals. Maritime applications can thrive with this plate due to its exceptional defense against seawater and brine, which makes it perfect for ocean ships and offshore systems.
Grade | C (Max) | Mn (Max) | P (Max) | S (Max) | Si (Max) | Cr | Ni | Mo | Nitrogen (Max) | Cu/ Others |
301 | 0.15 | 2.00 | 0.045 | 0.030 | 1.00 | 16.00 – 18.00 | 6.00 – 8.00 | – | 0.10 | – |
304 | 0.08 | 2.00 | 0.045 | 0.030 | 0.75 | 18.00 – 20.00 | 8.00- 10.50 | – | 0.10 | – |
310S | 0.08 | 2.00 | 0.045 | 0.030 | 1.50 | 24.00- 26.00 | 19.00 – 22.00 | – | – | – |
316 | 0.08 | 2.00 | 0.045 | 0.030 | 0.75 | 16.00 – 18.00 | 10.00 – 14.00 | 2.00 – 3.00 | 0.10 | – |
316L | 0.030 | 2.00 | 0.045 | 0.030 | 0.75 | 16.00 – 18.00 | 10.00 – 14.00 | 2.00 – 3.00 | 0.10 | – |
321 | 0.08 | 2.00 | 0.045 | 0.030 | 0.75 | 17.00 – 19.00 | 9.00 – 12.00 | – | 0.10 | Ti5 ( C + N ) Min or 0.70 max |
409 | 0.08 | 1.00 | 0.040 | 0.010 | 1.00 | 10.50 – 11.75 | 0.50 | – | – | Ti= 6x (C+ N ) Min or 0.70 Max |
410 | 0.15 | 1.00 | 0.040 | 0.030 | 1.00 | 11.50- 13.50 | 0.75 | – | – | – |
Grade | TensileStrength Mpa, (Min) | YieldStrengthMpa, (Min) | %AgeElongationin 50mmgauge length min | Hardness (Max) | |
BHN | Rb | ||||
304 | 515 | 205 | 40 | 201 | 92 |
310S | 515 | 205 | 40 | 217 | 95 |
316 | 515 | 205 | 40 | 217 | 95 |
317 | 515 | 205 | 35 | 217 | 95 |
317L | 515 | 205 | 40 | 217 | 95 |
321 | 515 | 205 | 40 | 217 | 95 |
409 | 380 | 170 | 20 | 179 | 88 |
410S | 415 | 205 | 22 | 183 | 89 |
410 | 450 | 205 | 20 | 217 | 89 |
Pharmaceutical and food manufacturing processes remain pure and hygienic because this material exhibits nonreactive behaviour. Our material serves applications in heat exchangers, power plants, pulp, paper mills, and aerospace industries. Organizations within industries searching for stainless steel that showcases distinguished performance under challenging conditions should use this.
