Product

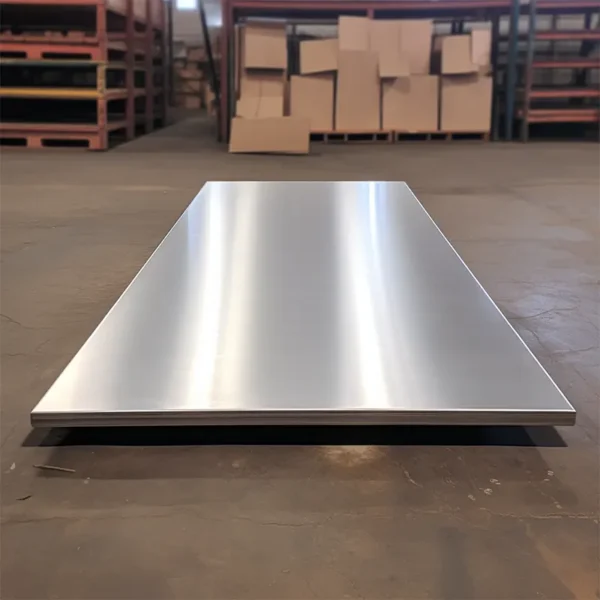

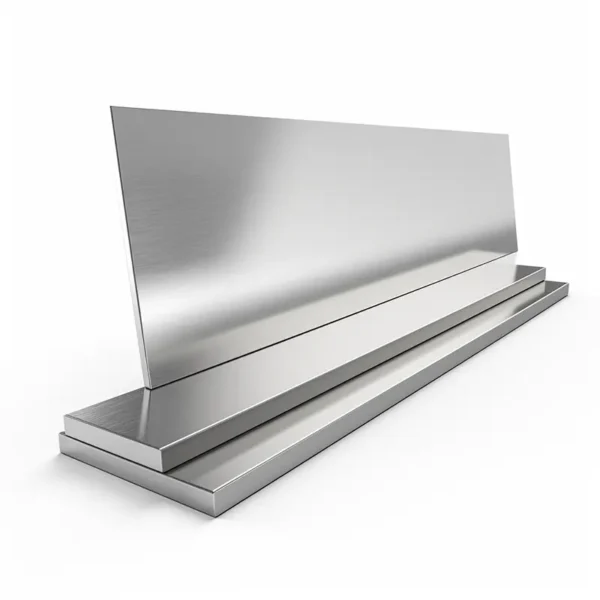

430 Stainless Steel Plate
430 Stainless Steel Plate is a ferritic stainless steel option that delivers premium corrosion protection alongside high formability capabilities and attractive visual characteristics. Chromium-rich stainless steel provides excellent durability and visual appeal which features a sleek polished finish. Our Stainless plates are cost-effective and available in all sizes and shapes. It requires low maintenance because of its corrosion resistance. This plate shows better protection against oxidation and stress corrosion than austenitic grades, making it usable for exterior and interior uses. It is often used in kitchen applications, automotive, architectural, and food processing equipment because fabrication and economic value are commonly found in 430 Stainless Steel Plates.
Parameter
It is consist of iron along with chromium 16-18% as its primary ingredients and minor amounts of carbon, manganese and silicon to achieve a strong combination of corrosion resistance and mechanical strength. The material receives its rust and oxidation protection from high chromium levels along with its ferritic structure which gives optimal scaling and heat resistance properties.
Specification | Stainless Steel Plate(Hot rolled, cold rolled) |
Standard | ASTM A240, JIS4304-2005, ASTM A167, EN10088-2-2005, GB/T3280-2007, etc |
Material | 201, 202, 304, 304L, 304H, 309, 309s, 316, 316L, 317, 317L, 321, 321H, 310, 347, 347H, 410, 416, 420, 430, 440, 904, 904L |
Surface | the surface and finish of stainless steel Plate:2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sandblast, Brush, etching, etc |
Thickness | 5mm-100mm |
Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
Brand: | Â Kuwait Origin, European Origin, Japanese Origin, US Origin, Korea Origin, Taiwan Origin |
Manufacturer: | POSCO, Aperam, Jindal Stainless, DKC Korea, Thyssenkrup, Baosteel, TISCO, Arcelor Mittal, VDM, Nippon Metal, Outokumpu |
Package | Standard export package, suit for all kinds of transport, or as required. |
Stainless Steel Plate Manufacturer Chemical Composition
According to the Stainless Steel Plate Manufacturers, the composition include a combination of Carbon, Manganese, Phosphorus, Sulfur, Silicon, Nickel, Nitrogen, and 16-18% Chromium.
Grade | C (Max) | Mn (Max) | P (Max) | S (Max) | Si (Max) | Cr | Ni | Mo | Nitrogen (Max) | Cu/ Others |
301 | 0.15 | 2.00 | 0.045 | 0.030 | 1.00 | 16.00 – 18.00 | 6.00 – 8.00 | – | 0.10 | – |
304 | 0.08 | 2.00 | 0.045 | 0.030 | 0.75 | 18.00 – 20.00 | 8.00- 10.50 | – | 0.10 | – |
310S | 0.08 | 2.00 | 0.045 | 0.030 | 1.50 | 24.00- 26.00 | 19.00 – 22.00 | – | – | – |
316 | 0.08 | 2.00 | 0.045 | 0.030 | 0.75 | 16.00 – 18.00 | 10.00 – 14.00 | 2.00 – 3.00 | 0.10 | – |
316L | 0.030 | 2.00 | 0.045 | 0.030 | 0.75 | 16.00 – 18.00 | 10.00 – 14.00 | 2.00 – 3.00 | 0.10 | – |
321 | 0.08 | 2.00 | 0.045 | 0.030 | 0.75 | 17.00 – 19.00 | 9.00 – 12.00 | – | 0.10 | Ti5 ( C + N ) Min or 0.70 max |
409 | 0.08 | 1.00 | 0.040 | 0.010 | 1.00 | 10.50 – 11.75 | 0.50 | – | – | Ti= 6x (C+ N ) Min or 0.70 Max |
410 | 0.15 | 1.00 | 0.040 | 0.030 | 1.00 | 11.50- 13.50 | 0.75 | – | – | – |
430 Stainless Steel Plate Supplier Mechanical Properties
The mechanical properties include: – Tensile Strength: 515 or 380 – Yield Strength: 205 or 170
Grade | TensileStrength Mpa, (Min) | YieldStrengthMpa, (Min) | %AgeElongationin 50mmgauge length min | Hardness (Max) | |
BHN | Rb | ||||
304 | 515 | 205 | 40 | 201 | 92 |
310S | 515 | 205 | 40 | 217 | 95 |
316 | 515 | 205 | 40 | 217 | 95 |
317 | 515 | 205 | 35 | 217 | 95 |
317L | 515 | 205 | 40 | 217 | 95 |
321 | 515 | 205 | 40 | 217 | 95 |
409 | 380 | 170 | 20 | 179 | 88 |
410S | 415 | 205 | 22 | 183 | 89 |
410 | 450 | 205 | 20 | 217 | 89 |
