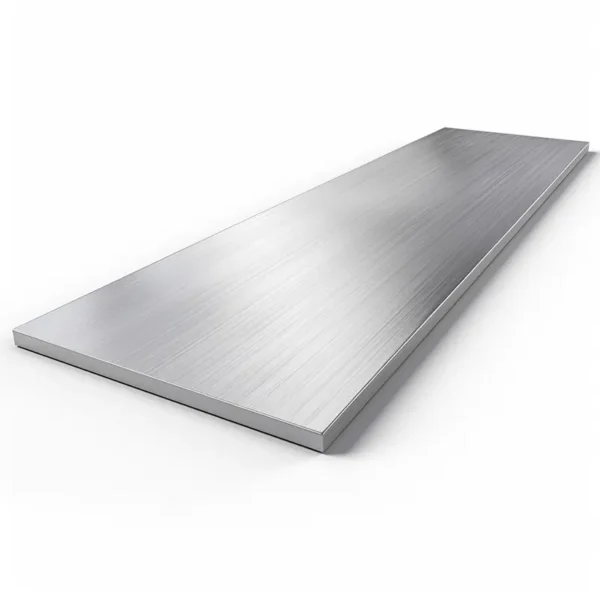

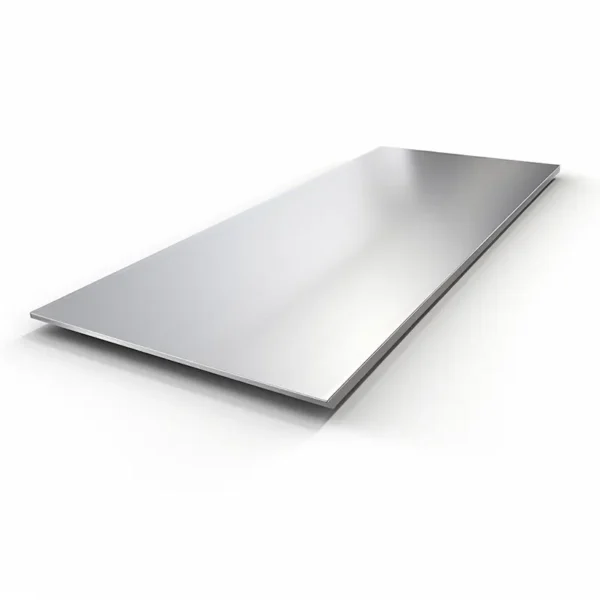

410 Stainless Steel Plate

410 Stainless Steel Plate is martensitic stainless steel intended for industrial work environments due to its high strength properties and material resistance against wear. This material delivers excellent hardness while providing moderate resistance to corrosion and superior durability, which makes it suitable for environments requiring strong mechanical properties. Thermal treatment of this stainless steel plate enhances its strength, thus enabling it to serve manufacturing operations, car manufacturing, and building projects.

Parameter

410 Stainless Steel Plate Sizes, Shapes & Specification

You can obtain 410 stainless steel plates with various thickness dimensions, widths, and length specifications. The material obeys ASTM A240, JIS4304-2005, and multiple international standards and carries chromium levels between 11.50% and 13.50% for achieving excellent corrosion resistance with mechanical strength. Because of its outstanding wear resistance properties, this plate has wide industrial applications, including machinery components, pressure vessels, pump shafts, turbine blades, and structural elements.

Specification 410 Stainless Steel Plate(Hot rolled, cold rolled)
Standard ASTM A240, JIS4304-2005, ASTM A167, EN10088-2-2005, GB/T3280-2007, etc
Material 201, 202, 304, 304L, 304H, 309, 309s, 316, 316L, 317, 317L, 321, 321H, 310, 347, 347H, 410, 416, 420, 430, 440, 904, 904L
Surface the surface and finish of stainless steel Plate:2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sandblast, Brush, etching, etc
Thickness 5mm-100mm
Width 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Brand:  Kuwait Origin, European Origin, Japanese Origin, US Origin, Korea Origin, Taiwan Origin
Manufacturer: POSCO, Aperam, Jindal Stainless, DKC Korea, Thyssenkrup, Baosteel, TISCO, Arcelor Mittal, VDM, Nippon Metal, Outokumpu
Package Standard export package, suit for all kinds of transport, or as required.



Grade C (Max) Mn (Max) P (Max) S (Max) Si (Max) Cr Ni Mo Nitrogen (Max) Cu/ Others
301 0.15 2.00 0.045 0.030 1.00 16.00 – 18.00 6.00 – 8.00 – 0.10 –
304 0.08 2.00 0.045 0.030 0.75 18.00 – 20.00 8.00- 10.50 – 0.10 –
310S 0.08 2.00 0.045 0.030 1.50 24.00- 26.00 19.00 – 22.00 – – –
316 0.08 2.00 0.045 0.030 0.75 16.00 – 18.00 10.00 – 14.00 2.00 – 3.00 0.10 –
316L 0.030 2.00 0.045 0.030 0.75 16.00 – 18.00 10.00 – 14.00 2.00 – 3.00 0.10 –
321 0.08 2.00 0.045 0.030 0.75 17.00 – 19.00 9.00 – 12.00 – 0.10 Ti5 ( C + N ) Min or 0.70 max
409 0.08 1.00 0.040 0.010 1.00 10.50 – 11.75 0.50 – – Ti= 6x (C+ N ) Min or 0.70 Max
410 0.15 1.00 0.040 0.030 1.00 11.50- 13.50 0.75 – – –
Grade TensileStrength Mpa, (Min) YieldStrengthMpa, (Min) %AgeElongationin 50mmgauge length min Hardness (Max)
BHN Rb
304 515 205 40 201 92
310S 515 205 40 217 95
316 515 205 40 217 95
317 515 205 35 217 95
317L 515 205 40 217 95
321 515 205 40 217 95
409 380 170 20 179 88
410S 415 205 22 183 89
410 450 205 20 217 89
Our material finds essential applications in oil and gas installations, petrochemical plants, food processing equipment, and aerospace applications. It resists heat well while delivering durability. The ability to machine and form these plates makes it the first selection of industrial engineers because of its fabrication ease. Place an order now to acquire a robust corrosive solution for your technical requirements.
