Product

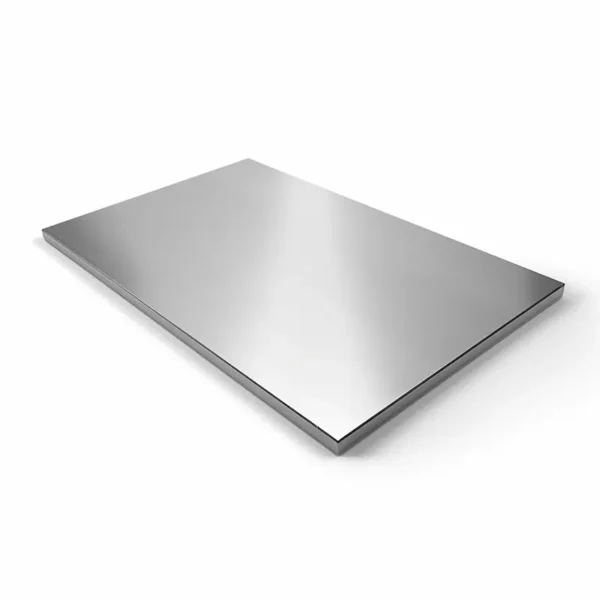

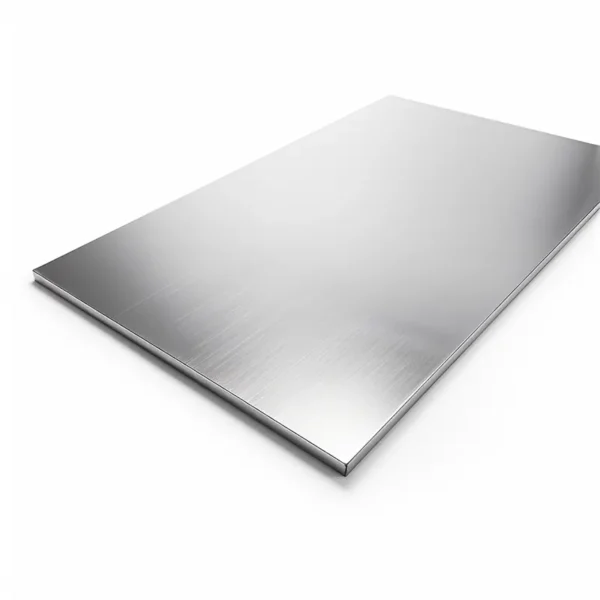

304L Stainless Steel Plate
They are introducing our Shanghai, China-sourced 304L Stainless Steel Plate. These precisely crafted stainless steel plates may be customized to meet your requirements. For your convenience, we provide flexible payment terms such as T/T, L/C, and Western Union, along with a quick 7-day delivery via land or sea transportation. Our plates are perfect for various applications since they meet several standards and requirements. These plates are solid and long-lasting because of their strong composition of carbon, manganese, and chromium. You may depend on Four Steels to provide high-quality stainless steel goods.
Parameter
| Specification | Stainless Steel Plate(Hot rolled, cold rolled) |
| Standard | ASTM A240, JIS4304-2005, ASTM A167, EN10088-2-2005, GB/T3280-2007, etc |
| Material | 201, 202, 304, 304L, 304H, 309, 309s, 316, 316L, 317, 317L, 321, 321H, 310, 347, 347H, 410, 416, 420, 430, 440, 904, 904L |
| Surface | the surface and finish of stainless steel Plate:2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sandblast, Brush, etching, etc |
| Thickness | 5mm-100mm |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Brand: | Kuwait Origin, European Origin, Japanese Origin, US Origin, Korea Origin, Taiwan Origin |
| Manufacturer: | POSCO, Aperam, Jindal Stainless, DKC Korea, Thyssenkrup, Baosteel, TISCO, Arcelor Mittal, VDM, Nippon Metal, Outokumpu |
| Package | Standard export package, suit for all kinds of transport, or as required. |
Stainless Steel Plate Manufacturer Chemical Composition
According to the Stainless Steel Plate Manufacturers, the composition include a combination of Carbon, Manganese, Phosphorus, Sulfur, Silicon, Nickel, Nitrogen, and 16-18% Chromium.
| Grade | C (Max) | Mn (Max) | P (Max) | S (Max) | Si (Max) | Cr | Ni | Mo | Nitrogen (Max) | Cu/ Others |
| 301 | 0.15 | 2.00 | 0.045 | 0.030 | 1.00 | 16.00 – 18.00 | 6.00 – 8.00 | – | 0.10 | – |
| 304 | 0.08 | 2.00 | 0.045 | 0.030 | 0.75 | 18.00 – 20.00 | 8.00- 10.50 | – | 0.10 | – |
| 310S | 0.08 | 2.00 | 0.045 | 0.030 | 1.50 | 24.00- 26.00 | 19.00 – 22.00 | – | – | – |
| 316 | 0.08 | 2.00 | 0.045 | 0.030 | 0.75 | 16.00 – 18.00 | 10.00 – 14.00 | 2.00 – 3.00 | 0.10 | – |
| 316L | 0.030 | 2.00 | 0.045 | 0.030 | 0.75 | 16.00 – 18.00 | 10.00 – 14.00 | 2.00 – 3.00 | 0.10 | – |
| 321 | 0.08 | 2.00 | 0.045 | 0.030 | 0.75 | 17.00 – 19.00 | 9.00 – 12.00 | – | 0.10 | Ti5 ( C + N ) Min or 0.70 max |
| 409 | 0.08 | 1.00 | 0.040 | 0.010 | 1.00 | 10.50 – 11.75 | 0.50 | – | – | Ti= 6x (C+ N ) Min or 0.70 Max |
| 410 | 0.15 | 1.00 | 0.040 | 0.030 | 1.00 | 11.50- 13.50 | 0.75 | – | – | – |
Stainless Steel Plate Supplier Mechanical Properties
The mechanical properties that Stainless Steel Plate Manufacturer keep in mind include: – Tensile Strength: 515 or 380 – Yield Strength: 205 or 170
| Grade | TensileStrength Mpa, (Min) | YieldStrengthMpa, (Min) | %AgeElongationin 50mmgauge length min | Hardness (Max) | |
| BHN | Rb | ||||
| 304 | 515 | 205 | 40 | 201 | 92 |
| 310S | 515 | 205 | 40 | 217 | 95 |
| 316 | 515 | 205 | 40 | 217 | 95 |
| 317 | 515 | 205 | 35 | 217 | 95 |
| 317L | 515 | 205 | 40 | 217 | 95 |
| 321 | 515 | 205 | 40 | 217 | 95 |
| 409 | 380 | 170 | 20 | 179 | 88 |
| 410S | 415 | 205 | 22 | 183 | 89 |
| 410 | 450 | 205 | 20 | 217 | 89 |
